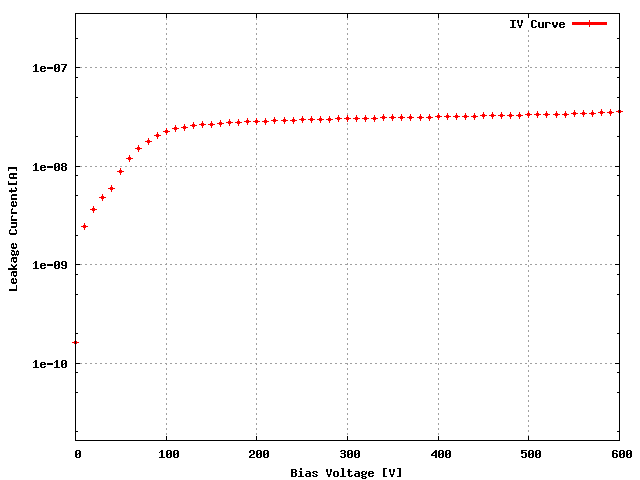

Sensor: S_1x2L_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K5HT | 21B |
| ROC1 | W35_XH4K5HT | 20B |
| Ibias_DAC, Ibias_DAC Data | 132 | 130 |
| Vana, VanaData | 131 | 126 |
| CalDelData and plots | 80 | 84 |
| VthrCompData and plots | 73 | 79 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 1 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_134_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_134_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 110 | 135 |
| Vsf | 140 | 140 |
| VoffsetOp | 95 | 55 |
| VIbias_PH | 95 | 100 |

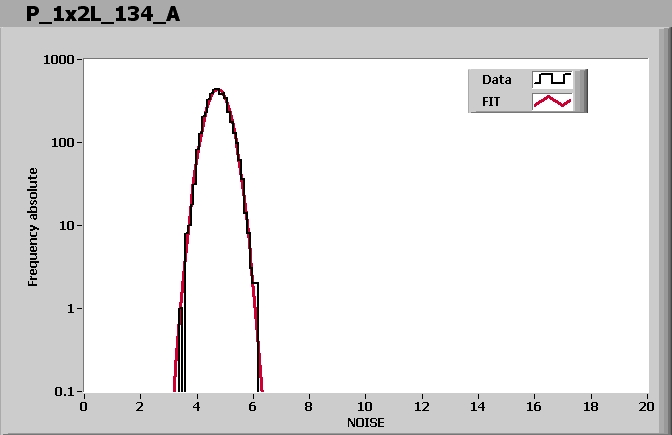

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_134_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_134_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.744035SIGMA = 0.380756 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_134_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_134_A-580-noise-ROC1-HISTO.jpg) | MEAN = 5.648968SIGMA = 0.433879 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:34 AM
