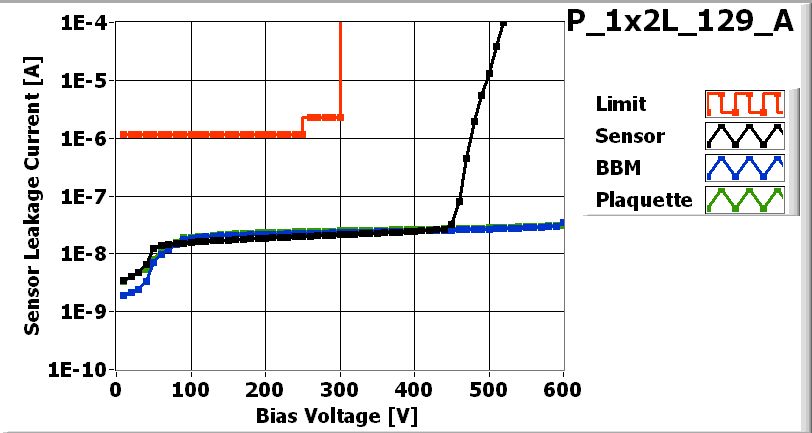

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_129_A_LASER.jpg)

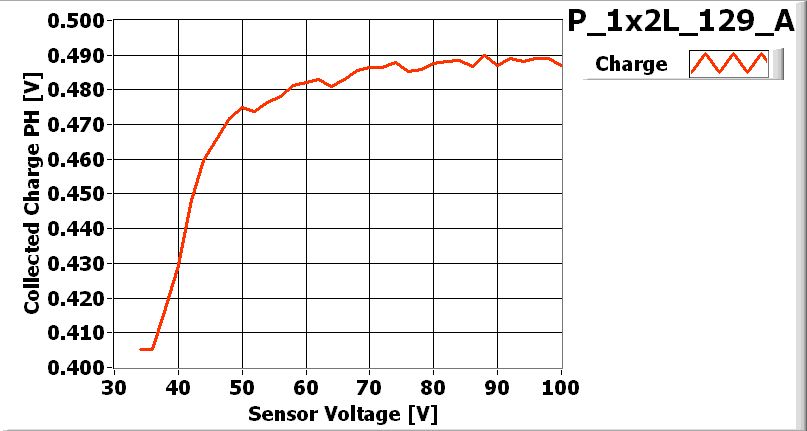

| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 12/21/2006
| Part | ID |
|---|---|
| BBM | BBM_129-1x2T |
| VHDI | 1x2L_222 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W32_XA4K5NT | 26D |
| ROC1 | W32_XA4K5NT | 25B |
Inspected by Kirk Arndt on date 2007-01-08
| LR_dev | 0.040 |
| LL_dev | 0.054 |
| FINAL COMMENT by Kirk Arndt | No assembly problems. No problems wirebonding. |
PLAQUETTE made READY for testing on 2007-01-08 by Kirk Arndt
PLAQUETTE TESTED on 2007-01-08 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 142 | 130 | |
| Vana | 141 | 133 | |
| Cal_Del | 77 | 82 | |
| Vthrs_Comp | 82 | 77 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_129_A_Ibias-dac.jpg) |

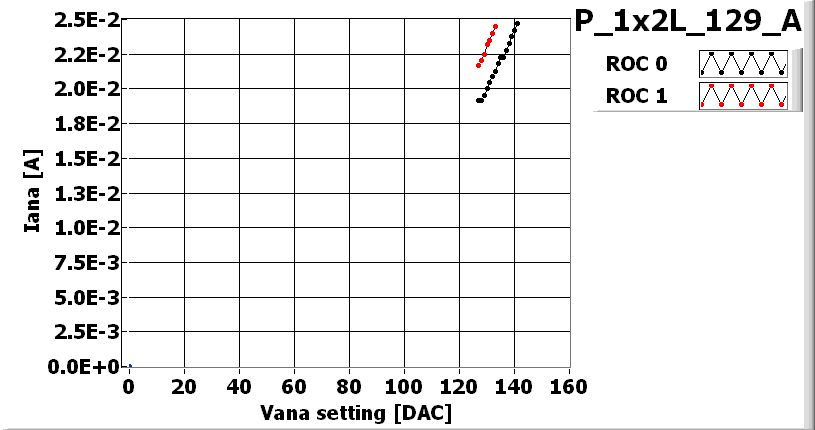

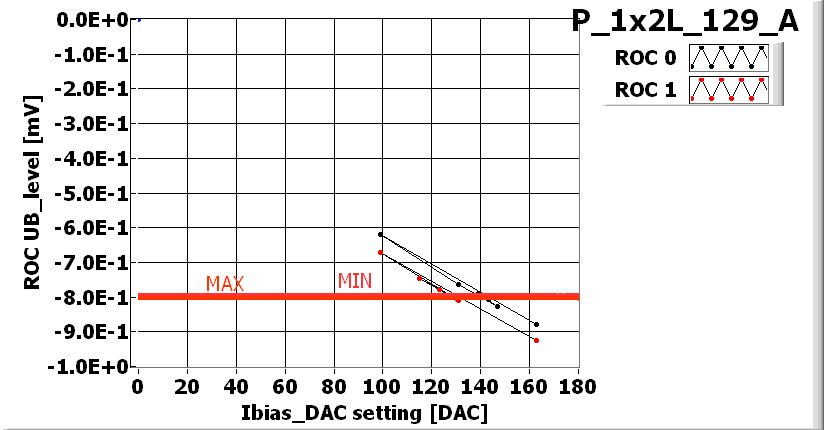

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_129_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_129_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_129_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_129_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_129_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE SHIPPED
