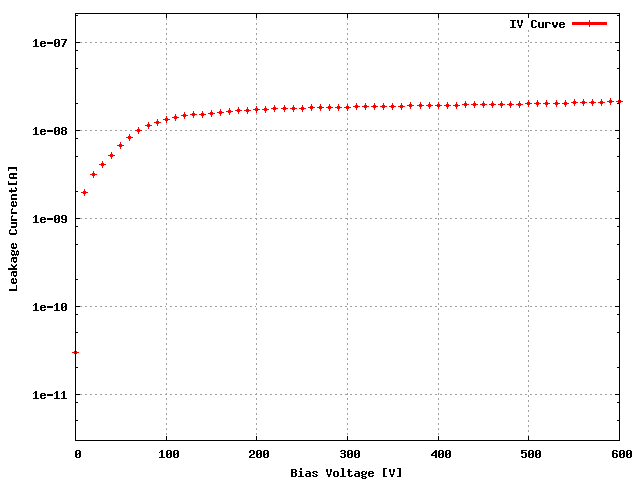

Sensor: S_1x2L_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 27C |
| ROC1 | KMNG2DT | 17A |
| Ibias_DAC, Ibias_DAC Data | 148 | 158 |
| Vana, VanaData | 154 | 145 |
| CalDelData and plots | 76 | 67 |
| VthrCompData and plots | 91 | 90 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2L_126_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_126_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 95 | 100 |
| Vsf | 145 | 145 |
| VoffsetOp | 95 | 105 |
| VIbias_PH | 100 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2L_126_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_126_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.121290SIGMA = 0.322746 |

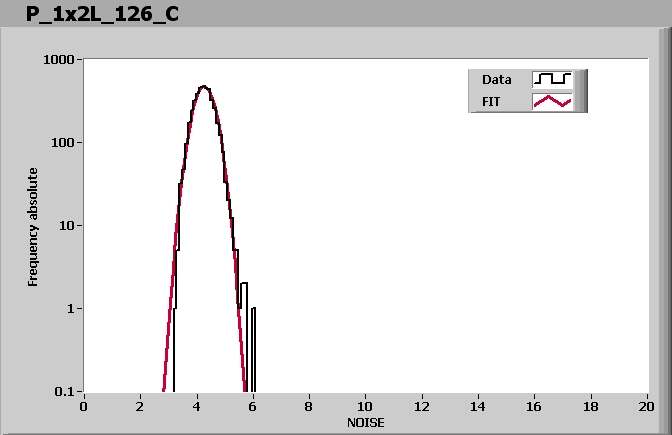

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_126_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_126_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.259646SIGMA = 0.347910 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:09 AM
