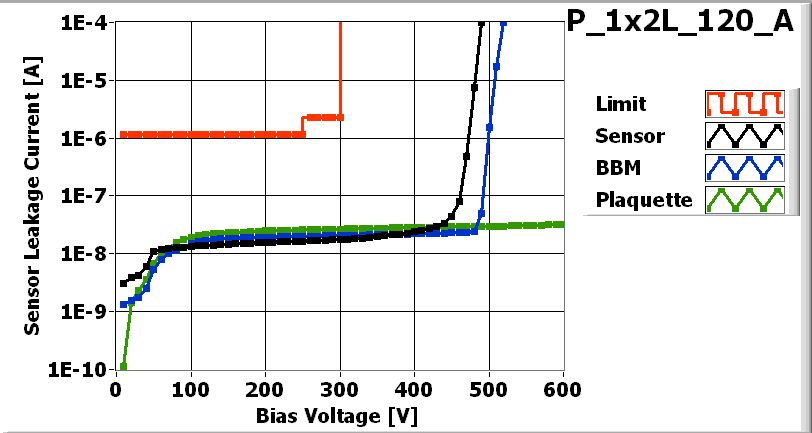

![[IMAGE] of](P_1x2L_120_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

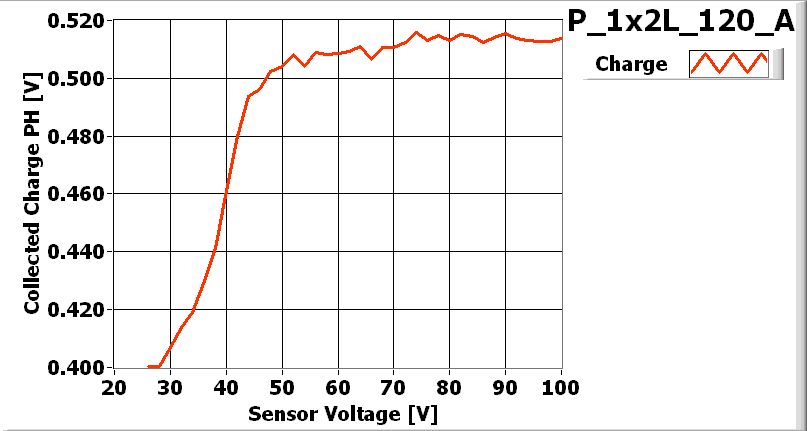

![[IMAGE] of](P_1x2L_120_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 11/7/2006
| Part | ID |
|---|---|
| BBM | BBM_120-1x2T |
| VHDI | 1x2L_201 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W20_XP4K3AT | 57A |
| ROC1 | W20_XP4K3AT | 56D |
Inspected by Graves Durand on date 11/13/2006
| LR_dev | 0.046 |
| LL_dev | 0.065 |
| FINAL COMMENT by Graves Durand | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for testing on 11/13/2006 by Graves Durand
PLAQUETTE TESTED on 2006-11-14 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 131 | 143 | |
| Vana | 122 | 145 | |
| Cal_Del | 95 | 85 | |
| Vthrs_Comp | 75 | 82 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

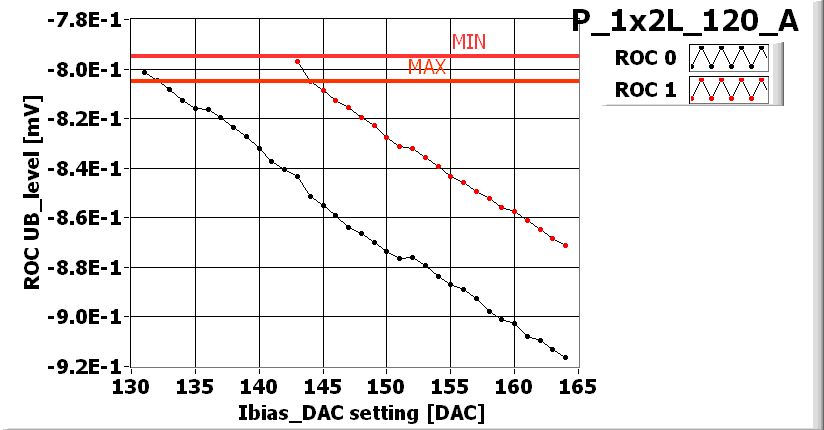

![[IMAGE] of](P_1x2L_120_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

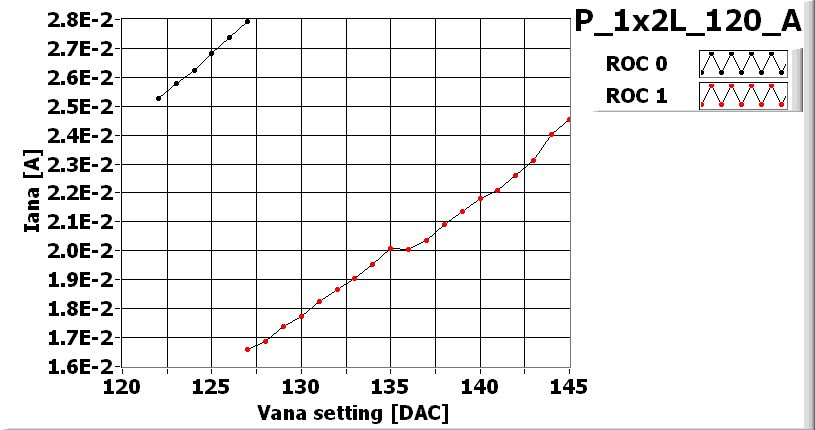

![[IMAGE] of](P_1x2L_120_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_120_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_120_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_120_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_120_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
