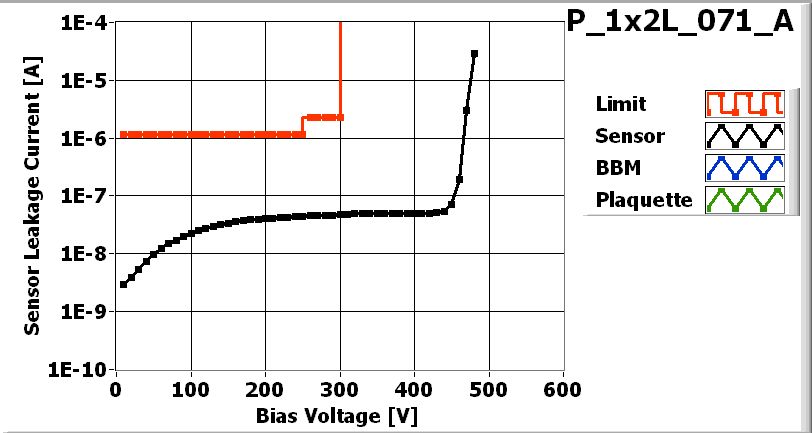

![[IMAGE] of](P_1x2L_071_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 480 V |

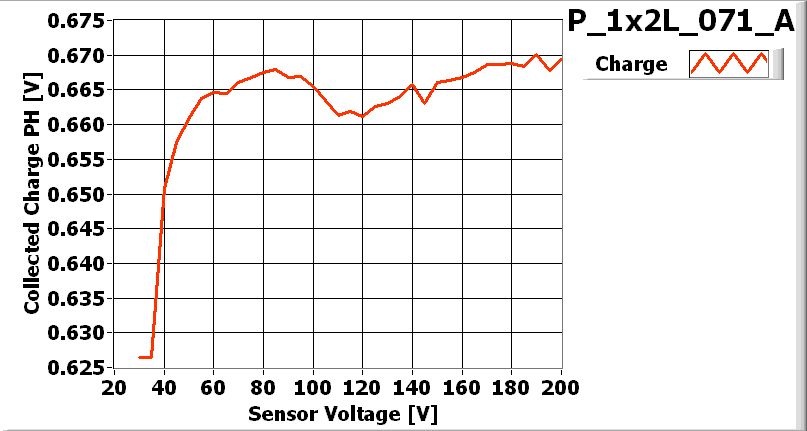

![[IMAGE] of](P_1x2L_071_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_071-1x2T |
| VHDI | 1x2L_202 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X14JP6T | 29A |
| ROC1 | X14JP6T | 28D |
Inspected by Arndt Kirk on date 2006-06-29
| LR_dev | 0.060 |
| LL_dev | 0.060 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-29 by Arndt Kirk
PLAQUETTE TESTED on 2006-6-29 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 171 | 152 | |
| Vana | 140 | 137 | |
| Cal_Del | 74 | 83 | |
| Vthrs_Comp | 76 | 76 | |
| Unbumped | 0 | 0 | |
| Dead | 1 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

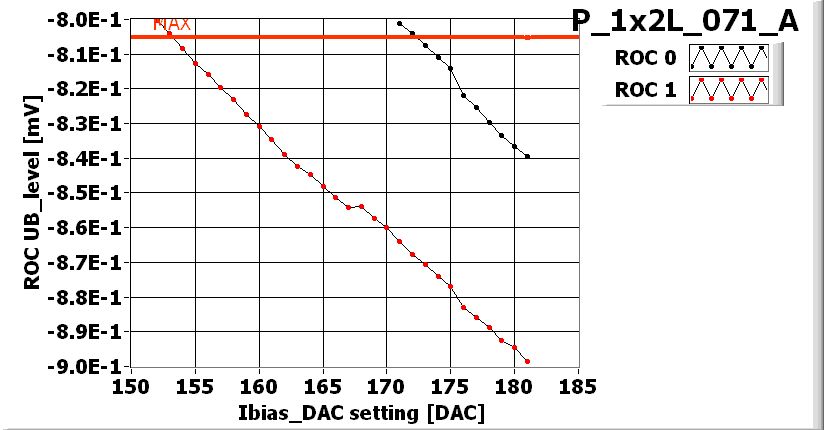

![[IMAGE] of](P_1x2L_071_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

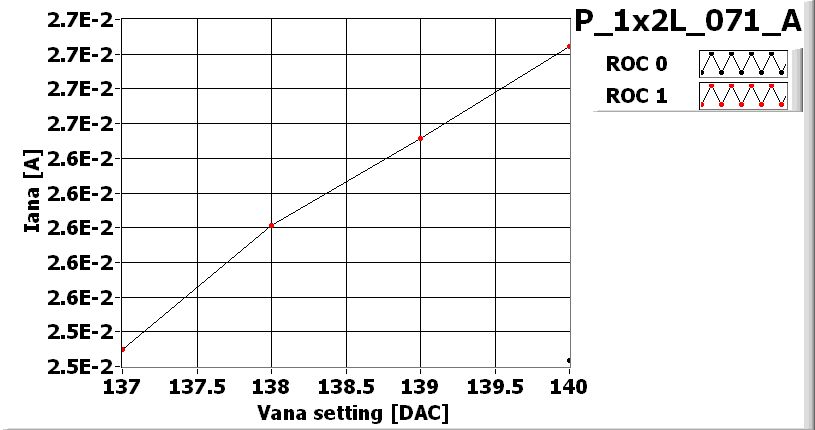

![[IMAGE] of](P_1x2L_071_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_071_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_071_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_071_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_071_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-11
