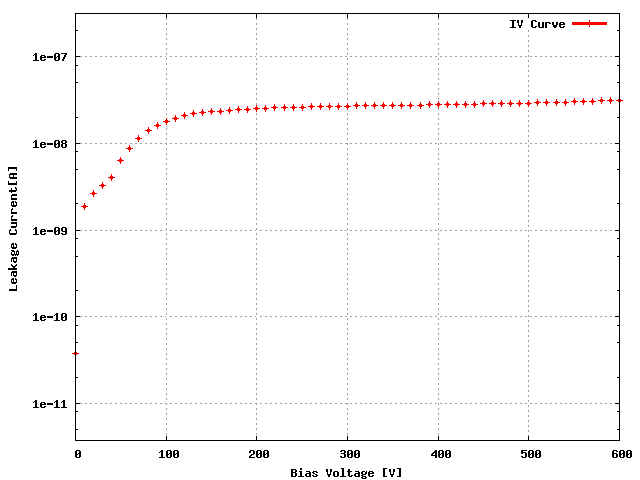

Sensor: S_1x2L_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 03B |
| ROC1 | W29_X64K5ST | 03A |
| Ibias_DAC, Ibias_DAC Data | 146 | 136 |
| Vana, VanaData | 141 | 145 |
| CalDelData and plots | 64 | 76 |
| VthrCompData and plots | 85 | 82 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_067_A-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_067_A-100-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 105 | 85 |
| Vsf | 140 | 140 |
| VoffsetOp | 100 | 85 |
| VIbias_PH | 105 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2L_067_A-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_067_A-100-noise-ROC0-HISTO.jpg) | MEAN = 4.646091SIGMA = 0.349533 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_067_A-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_067_A-100-noise-ROC1-HISTO.jpg) | MEAN = 4.830484SIGMA = 0.389262 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 4:34 PM
