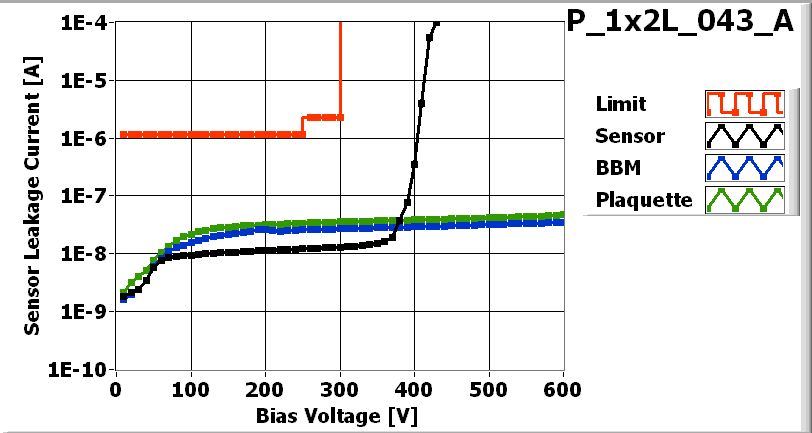

![[IMAGE] of](P_1x2L_043_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

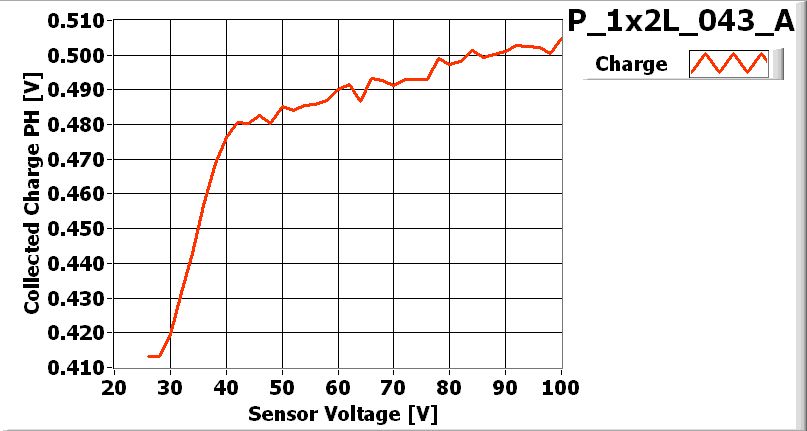

![[IMAGE] of](P_1x2L_043_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 11/7/2006
| Part | ID |
|---|---|
| BBM | BBM_043-1x2T |
| VHDI | 1x2L_203 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W18_XJ4KT3FT | 52C |
| ROC1 | W18_XJ4KT3FT | 52B |
Inspected by Arndt Kirk on date 11/14/2006
| LR_dev | 0.065 |
| LL_dev | 0.041 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for testing on 11/14/2006 by Arndt Kirk
PLAQUETTE TESTED on 2006-11-14 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 142 | 143 | |
| Vana | 125 | 132 | |
| Cal_Del | 71 | 81 | |
| Vthrs_Comp | 90 | 86 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

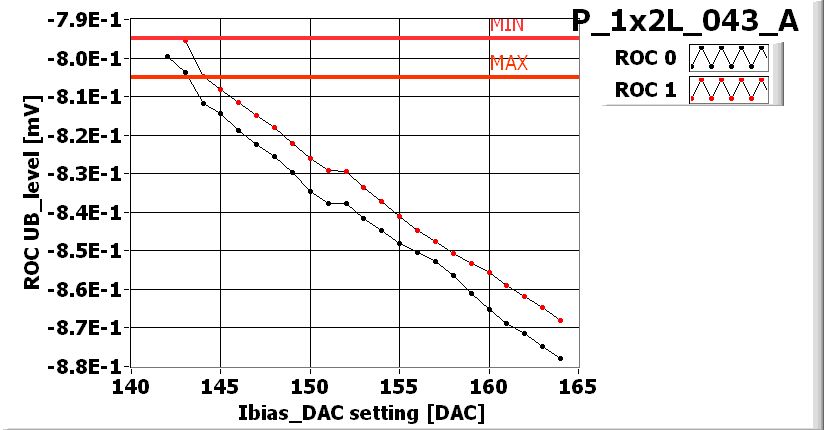

![[IMAGE] of](P_1x2L_043_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_043_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_043_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_043_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_043_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_043_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
