| IV_XML-File |
| Maximum Voltage 0 V |
![[IMAGE] of](P_1x2L_042_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_042-1x2T |
| VHDI | 1x2L_236 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XK4K3ET | 04C |
| ROC1 | XK4K3ET | 04D |
Inspected by Arndt Kirk on date 2006-08-24
| LR_dev | 0.009 |
| LL_dev | 0.038 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-24 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-25 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 141 | 158 | |
| Vana | 124 | 144 | |
| Cal_Del | 89 | 83 | |
| Vthrs_Comp | 70 | 77 | |
| Unbumped | 2 | 2 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 2 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_042_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2L_042_C_Vana.jpg) |
VANA_XML-File |

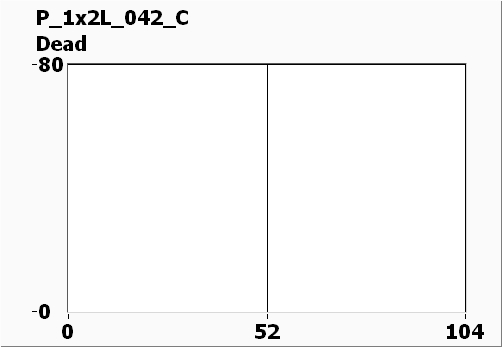

![[IMAGE] of](P_1x2L_042_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_042_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_042_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_042_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-30
