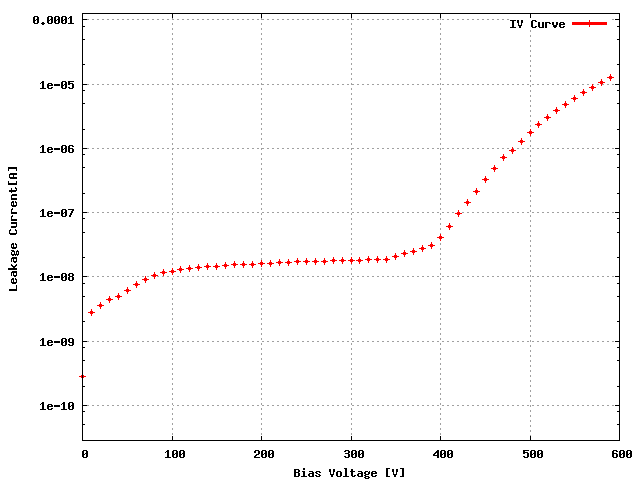

Sensor: S_1x2L_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XF4K3JT | 04B |
ROC1 | XF4K3JT | 14B |
Ibias_DAC, Ibias_DAC Data | 139 | 115 |
Vana, VanaData | 120 | 112 |
CalDelData and plots | 87 | 97 |
VthrCompData and plots | 82 | 69 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 0 | 0 |
LightData ,Light Plots | 1 | 0 |
Pass/Fail TestD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD |
Comment (if any): Perfect plaquette.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:01 PM
