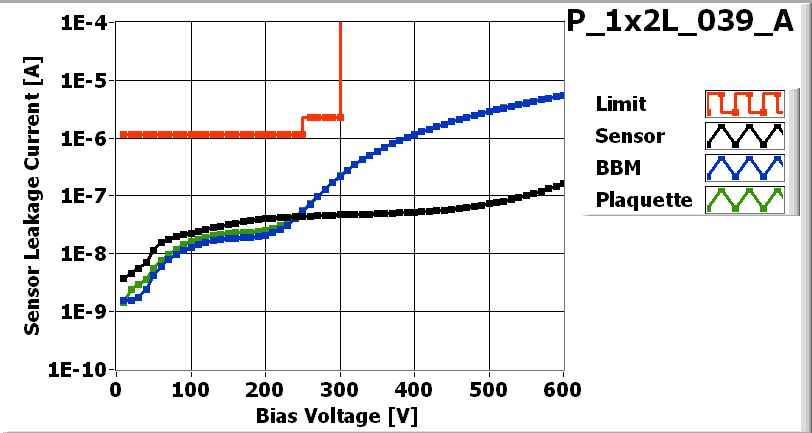

![[IMAGE] of](P_1x2L_039_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

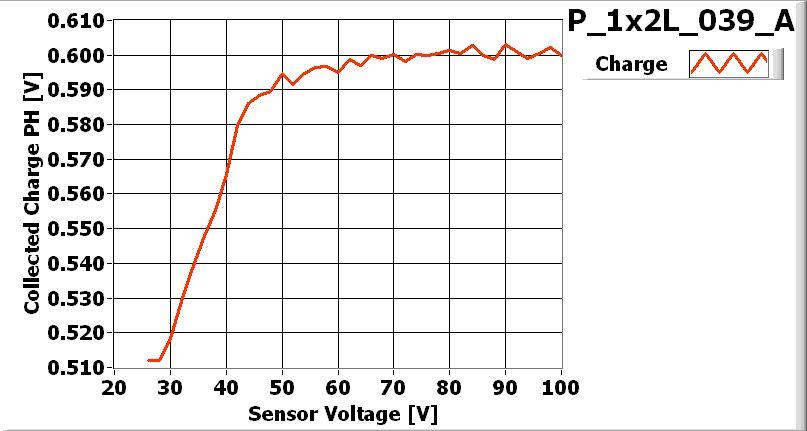

![[IMAGE] of](P_1x2L_039_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 11/1/2006
| Part | ID |
|---|---|
| BBM | BBM_039-1x2T |
| VHDI | 1x2L_239 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W18_XJ4KT3FT | 61B |
| ROC1 | W18_XJ4KT3FT | 06A |
Inspected by Graves Durand on date 11/6/2006
| LR_dev | 0.045 |
| LL_dev | 0.084 |
| FINAL COMMENT by Graves Durand | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 11/6/2006 by Graves Durand
PLAQUETTE TESTED on 2006-11-06 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 154 | 143 | |
| Vana | 131 | 128 | |
| Cal_Del | 73 | 102 | |
| Vthrs_Comp | 87 | 83 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 1 | |
| Total BAD | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

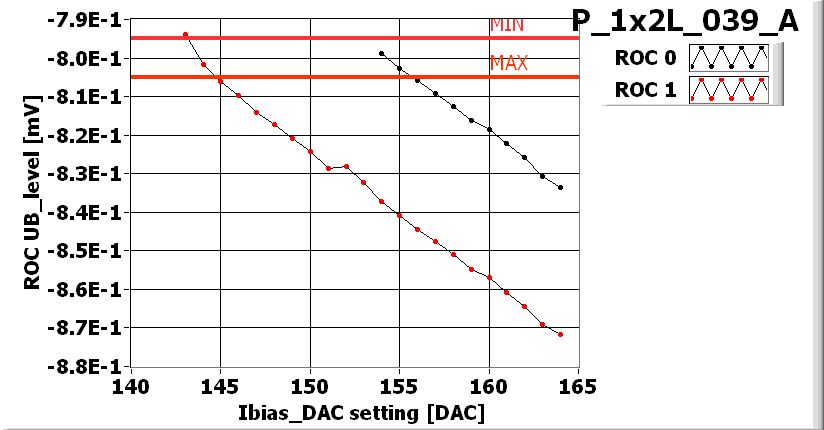

![[IMAGE] of](P_1x2L_039_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

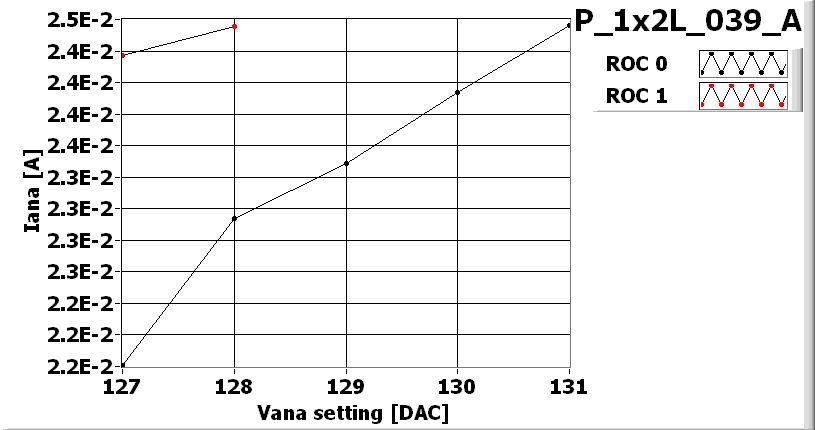

![[IMAGE] of](P_1x2L_039_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_039_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_039_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_039_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_039_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
