| Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
|---|---|---|---|---|

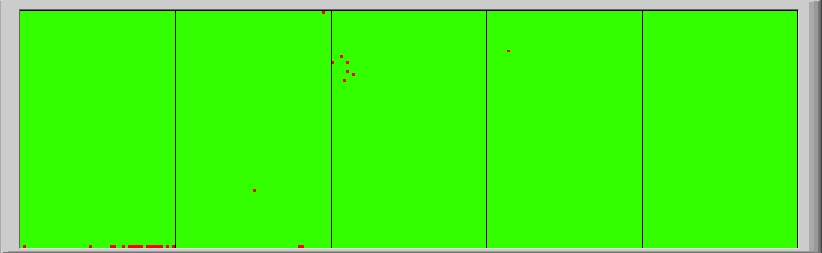

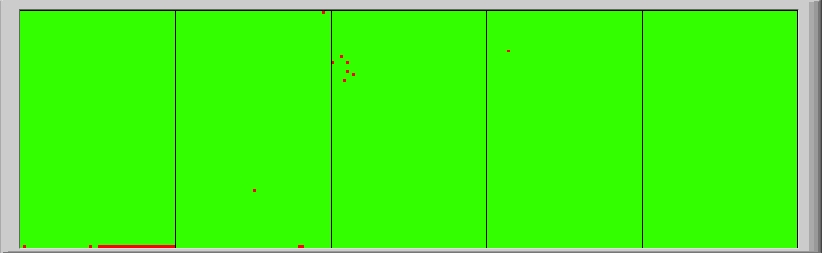

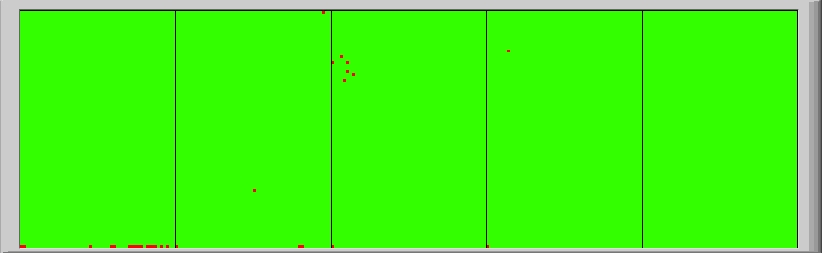

| P_1x5L_089_C | 4 | | | |

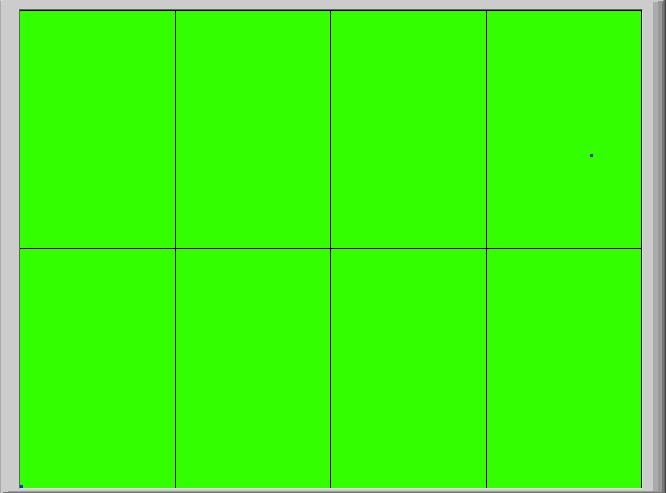

| P_2x4B_100_A | 3 | | | |

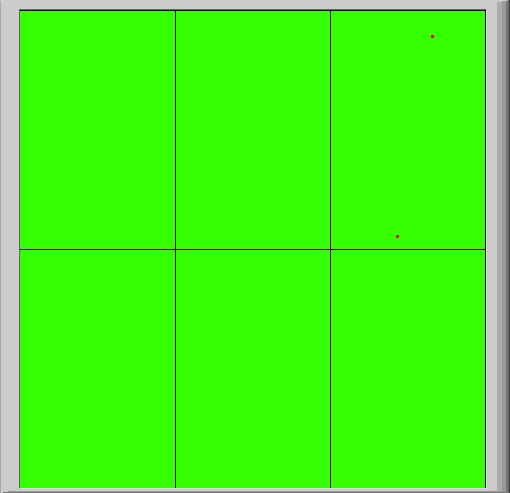

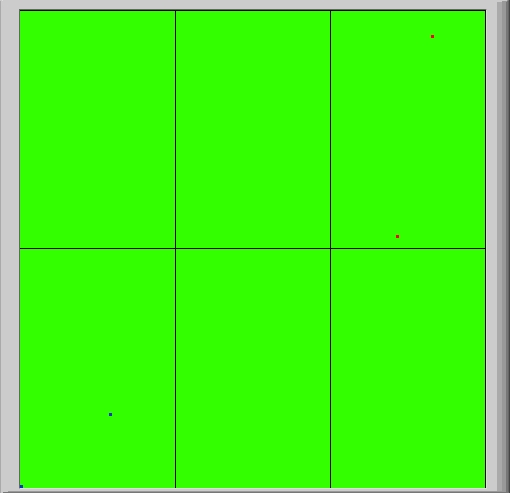

| P_2x3B_089_C | 2 | | | |

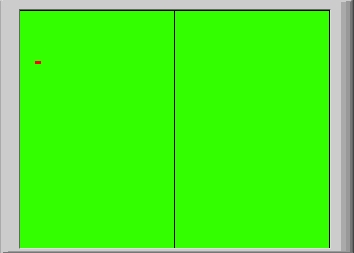

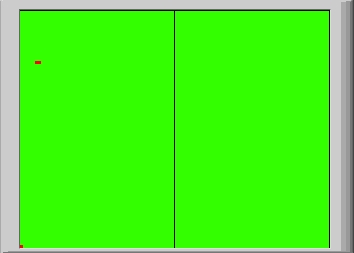

| P_1x2R_061_C | 1 | | | |
| Panel assembly comments |
|---|
| 6Feb07: This panel was light and fully PTA tested by Hengbao today after encapsulating the TBM. 2Feb07:ENCAPSULATED PANEL and PTA tested after encapsulation. The TBM was not encap as a wire bond had to be fixed. It has been fixed now. So we will quick test it to make sure it is OK. 31may07/ME: Panel was incorrectly marked as grade B. Changed to grade A- (1x5 ROC 0 has 28 bad bumps). |
