P4L_008

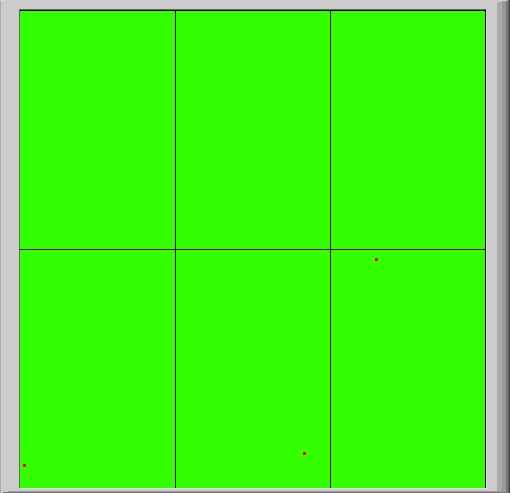

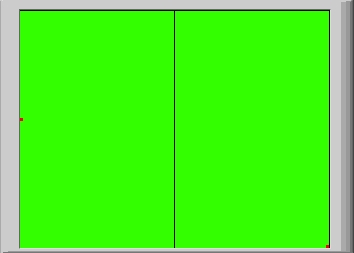

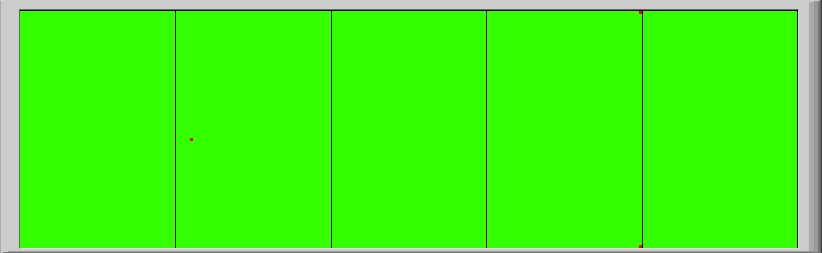

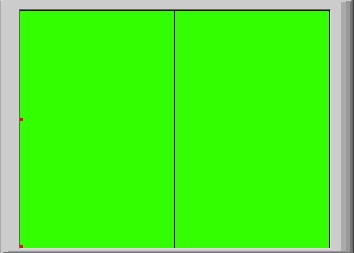

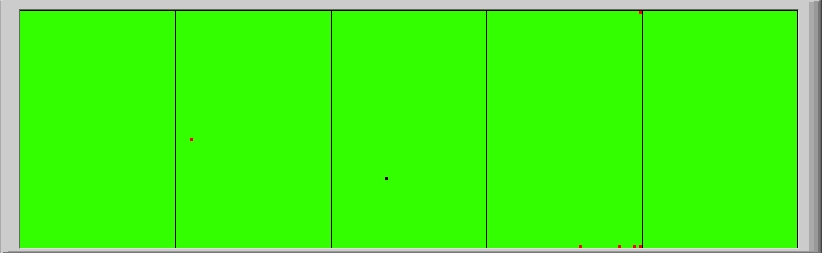

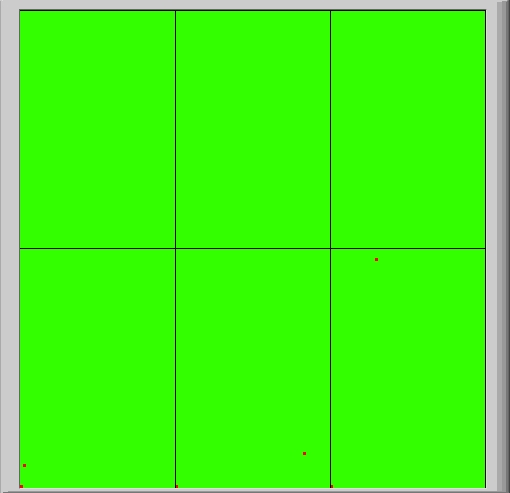

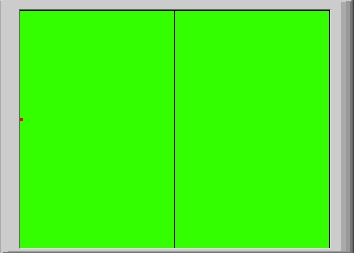

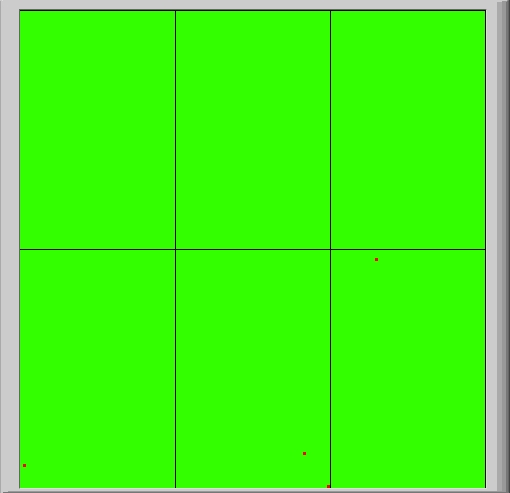

Unbumped pixels are red, dead are black, noisy are yellow, and undecoded are blue
Plaquette
Position
Purdue Map
FNAL Plaq. Map
FNAL Panel Map
P_1x5R_042_C
4
P_2x4B_179_A
3
P_2x3T_059_C
2
P_1x2L_029_C
1
Panel assembly comments
12Feb07/Sudhir: This encapsulated panel was PTA and light tested today by Mike Eads
Overall panel grade:
A
