| Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
|---|---|---|---|---|

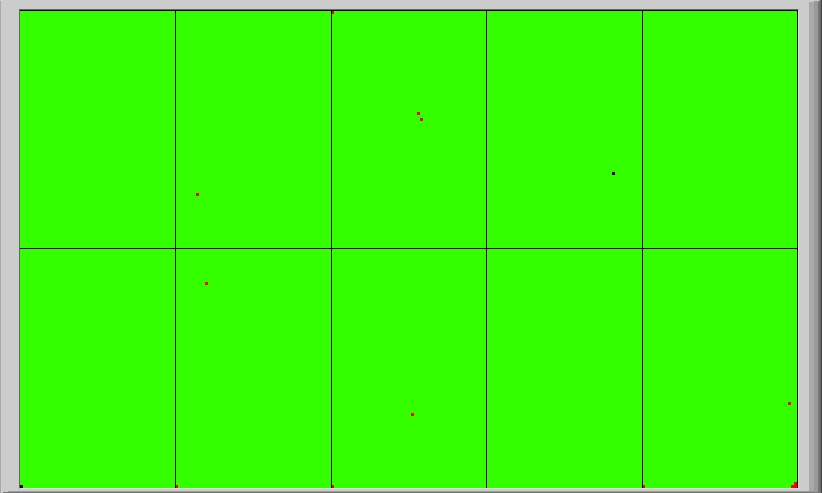

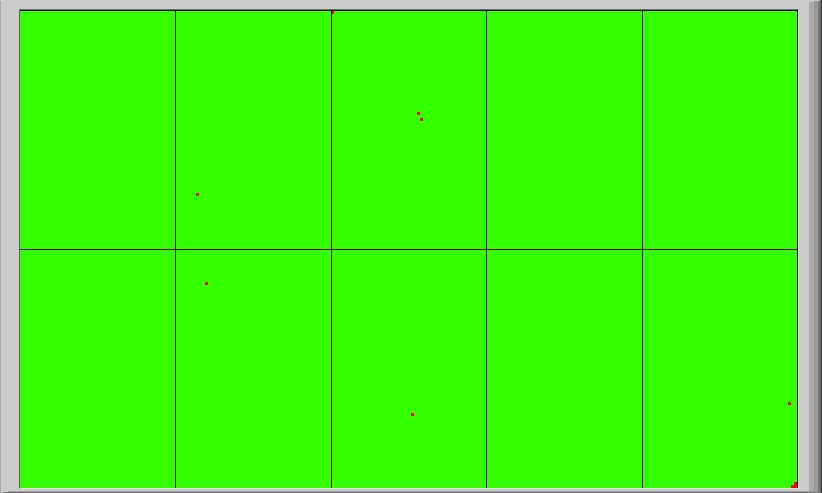

| P_2x5_089_C | 3 | | | |

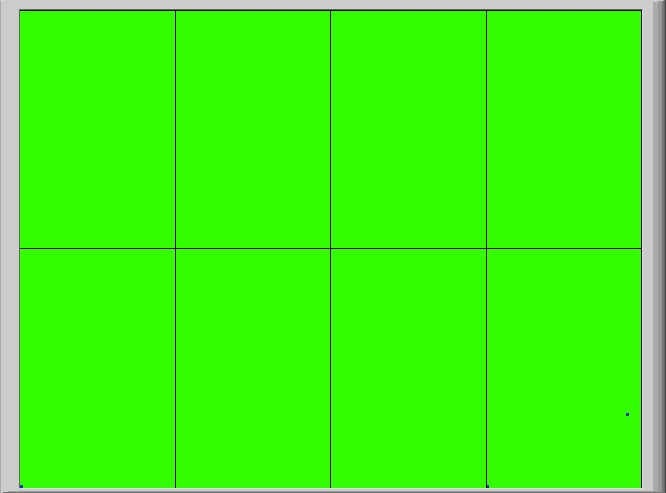

| P_2x4B_089_C | 2 | | | |

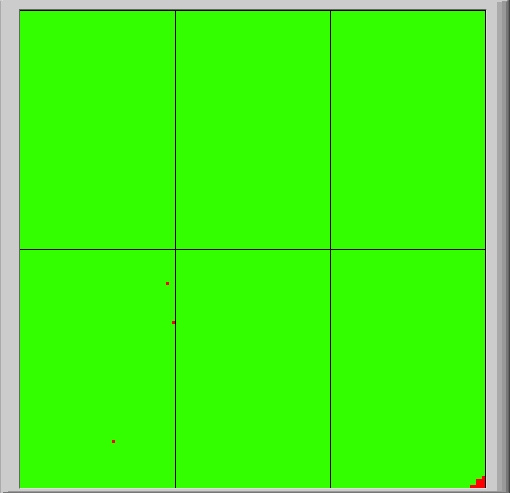

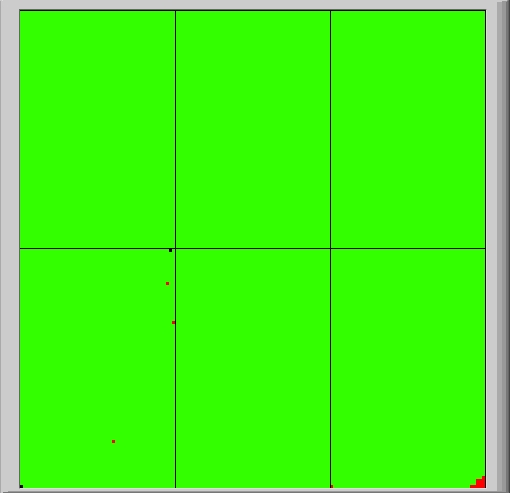

| P_2x3B_092_C | 1 | | | |
| Panel assembly comments |
|---|
| 20Feb07/Sudhir: This panel was light tested and PTA-verified today by Sudhir. It is given to John Krider to be mounted on first cooling ring. A PTA verified means that following tests were done- IV,Vana,Phase,UB,Thr/tim,Pixel Readout,Load Trim bits,Scurves at +20C and -200V with no dry nitrogen flowing in the cold box. |
