Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
---|---|---|---|---|

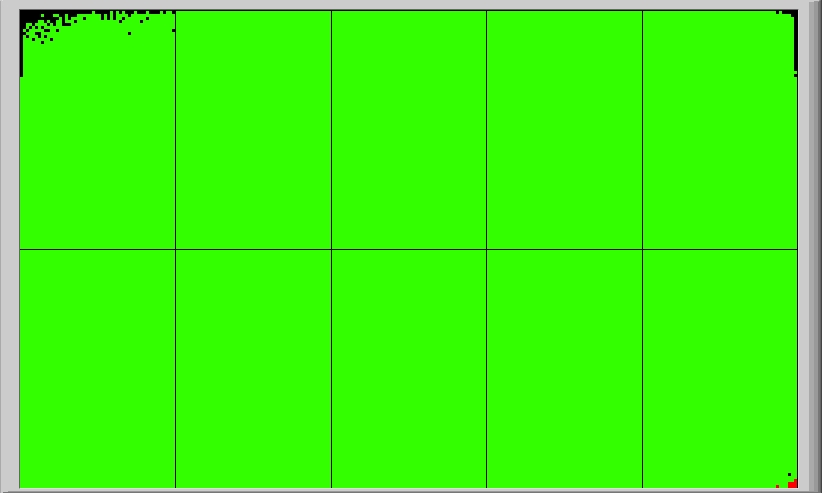

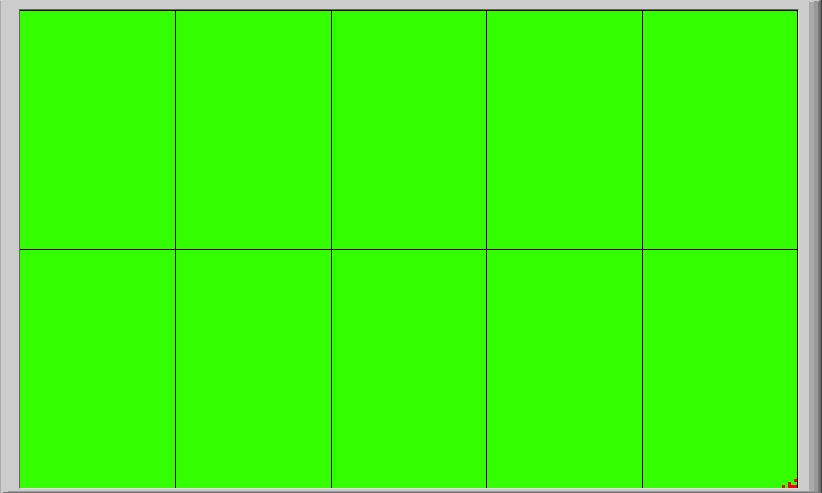

P_2x5_063_A | 3 | |||

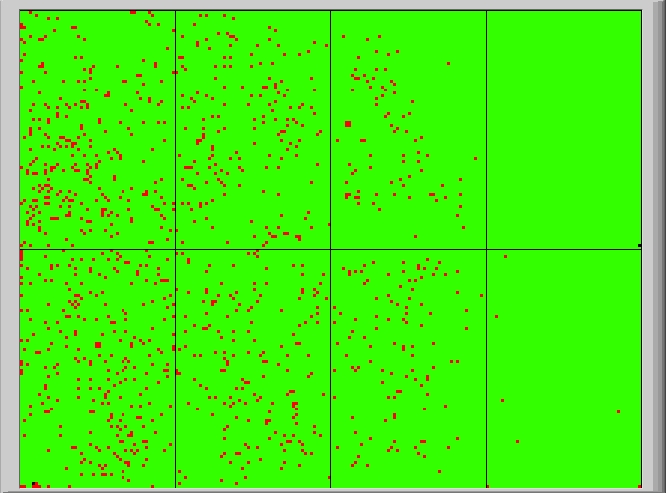

P_2x4B_925_C | 2 | |||

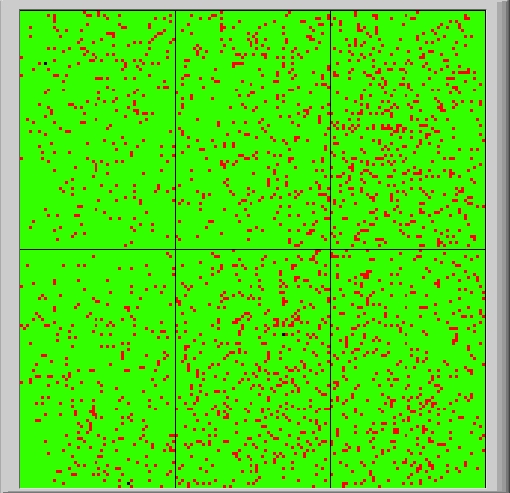

P_2x3B_923_C | 1 |
Panel assembly comments |
---|
Trial panel built with Grade C plaquettes. Built to see the circuitry of the HDI. It was built using the noisy HDIs (Oct. 12, 2006) J.C. used it to test his encapsulation procedure (Jan 25, 07) |
