BBM_152-2x4T

RECEIVED by McKinney Cameron on date 2/26/2007 From IZM

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	61B
ROC1	W34_XA4K3PT	76C
ROC2	W34_XA4K3PT	76B
ROC3	W34_XA4K3PT	76A
ROC4	W34_XA4K3PT	44A
ROC5	W34_XA4K3PT	44C
ROC6	W34_XA4K3PT	44D
ROC7	W34_XA4K3PT	45A

Inspected by McKinney Cameron on date 2/26/2007

Picture	Comment

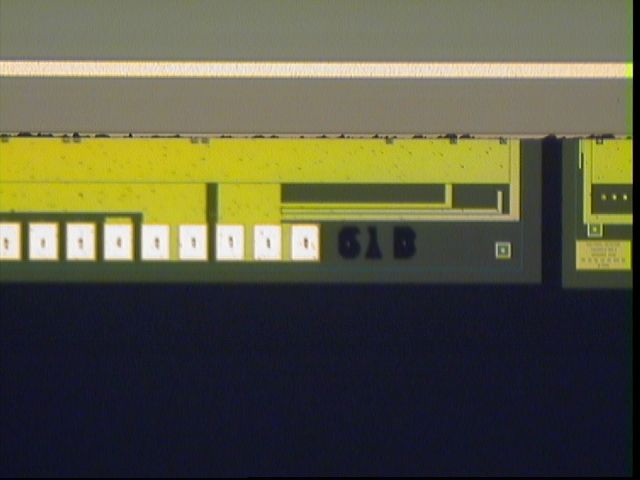

	ROC0 is labeled as 61B but was listed as 76D. I manually changed the html to fix this.

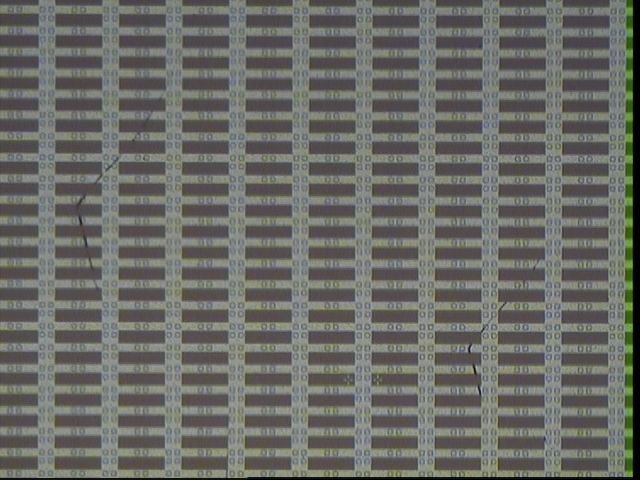

	Two similar scratches in the middle of ROC0

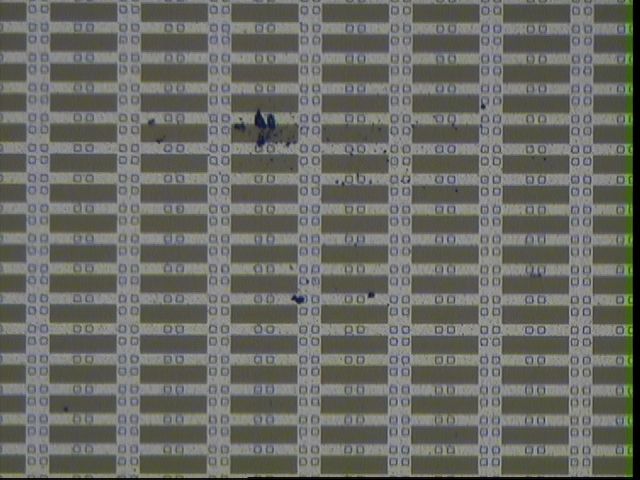

	Some residue towards the left side of ROC3

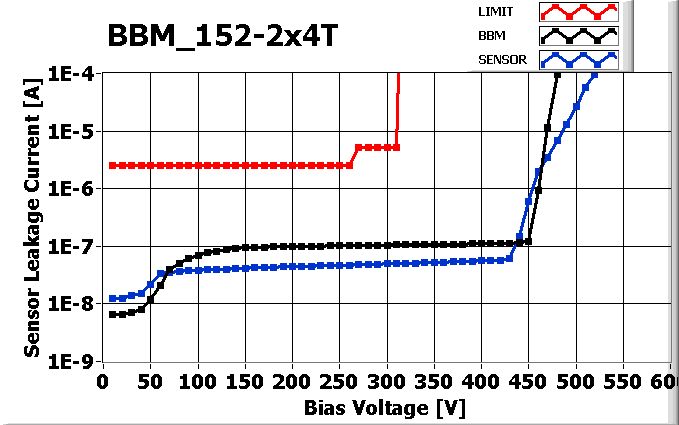

IV Measured by McKinney Cameron on date 2/26/2007

IV XML File

DEVICE ready for Plaquette assembly

ACCEPTED by McKinney Cameron on date 2/26/2007

committed to PLAQUETTE P_2x4T_152_A by Arndt Kirk on date 2/27/2007
