BBM_143-2x5

RECEIVED by Bolla Gino on date 1/17/2007 From IZM

ROC	ROC wafer	Label
ROC0	W30_X74K5RT	74C
ROC1	W30_X74K5RT	74B
ROC2	W30_X74K5RT	74A
ROC3	W30_X74K5RT	73D
ROC4	W30_X74K5RT	73B
ROC5	W30_X74K5RT	58A
ROC6	W30_X74K5RT	58B
ROC7	W30_X74K5RT	58C
ROC8	W30_X74K5RT	58D
ROC9	W30_X74K5RT	40D

Inspected by Bolla Gino on date 1/18/2007

Picture	Comment

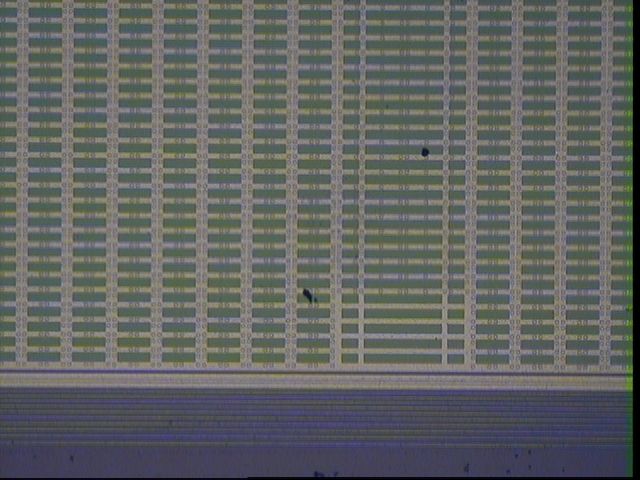

	Two large spots between ROCs 0 and 1

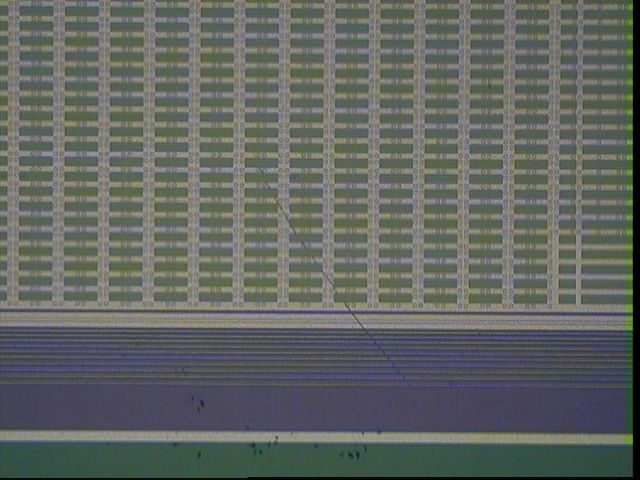

	Long streak on bottom right corner of ROC 1

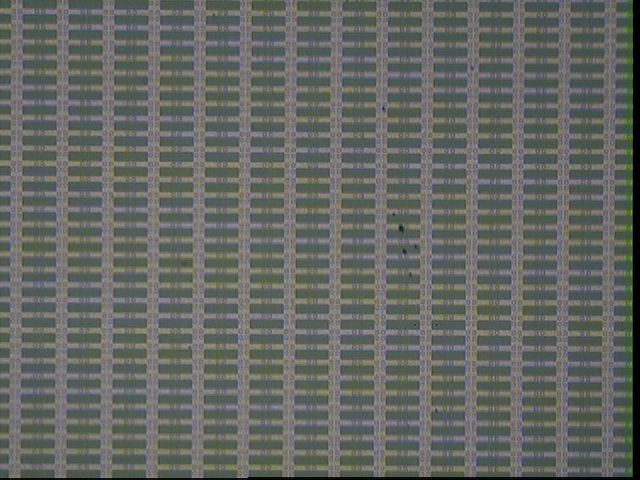

	Several spots in the middle of ROC 4

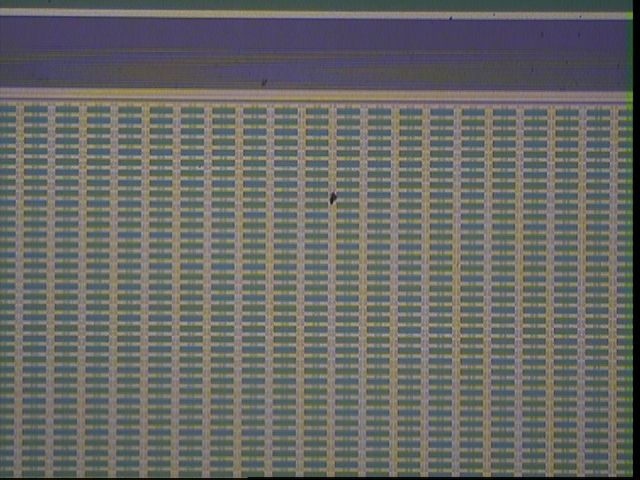

	Very large spot near top of ROC 8

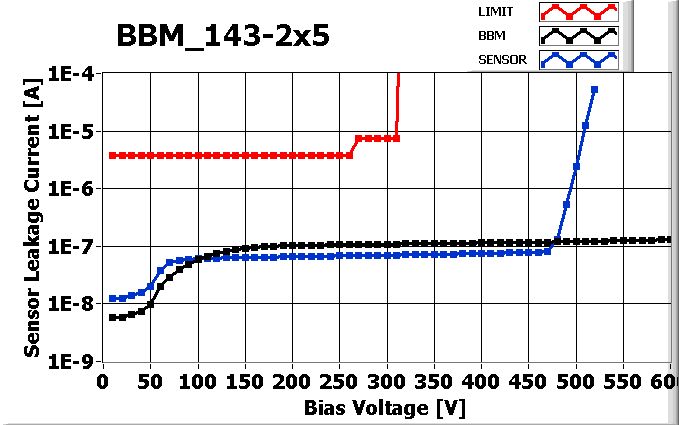

IV Measured by Bolla Gino on date 1/18/2007

IV XML File

DEVICE ready for Plaquette assembly

ACCEPTED by Bolla Gino on date 1/18/2007

committed to PLAQUETTE P_2x5_143_A by Bolla Gino on date 1/18/2007
