Test Date: 2016-10-19 11:34
Analysis date: 2016-10-19 14:40
Analysis date: 2016-10-19 14:40
Chip 15

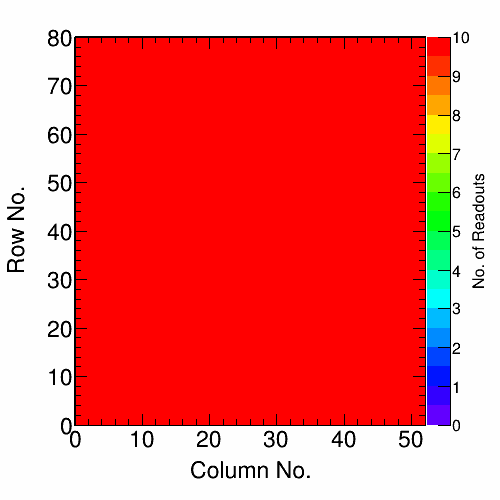

Pixel Map: C15
| NNotAlivePixels | Tot. Dead Pixels | 0 | |
| NDeadPixels | - N Dead Pixels | 0 | |
| NNoisyPixels | - N Noisy Pixels | 0 | |
| NMaskDefects | - N Mask Defects | 0 | |
| NInefficentPixels | - N Inefficent Pixels | 0 |

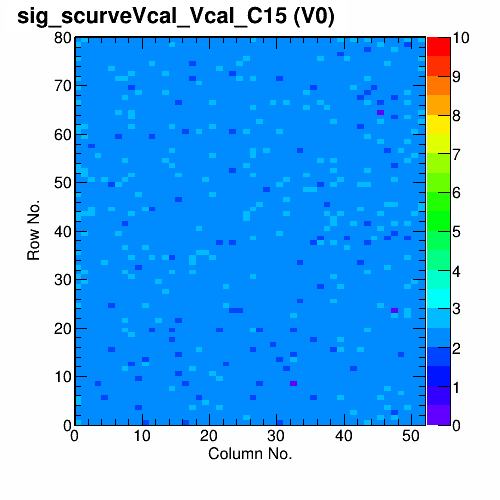

SCurveWidths
| N | N | 4160 | |
| mu | μ | 119.95 | |
| sigma | RMS | 4.77 | |
| NNoiseDefects | # Noise defects | 0 |
Vcal Threshold Trimmed
| N | N | 4160 | |
| mu | μ | 35.09 | |
| sigma | σ_fit | 0.91 | |
| NTrimProblems | N Trim Problems | 0 |

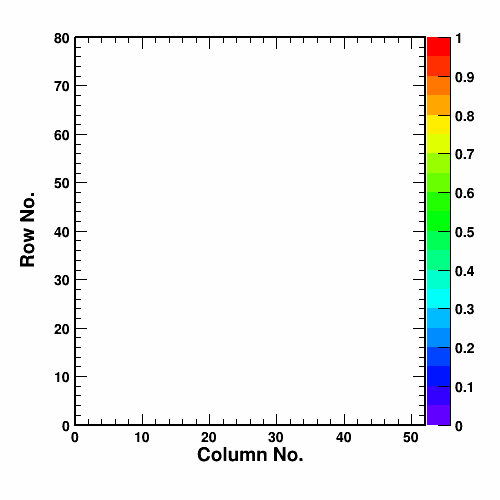

Bump Bonding: C15
| Mean | Mean | 0.01 | |
| RMS | RMS | 1.0 | |
| Threshold | Threshold | 5.0 | |
| nSigma | σ | 5.0 | |
| nBumpBondingProblems | N BumpProblems | 0.0 |
Summary
| Total | Total | 0 | |
| nDeadPixel | - Dead Pixels | 0 | |
| nMaskDefect | - Mask Defects | 0 | |
| nDeadBumps | - Dead Bumps | 0 | |
| nDeadTrimbits | - Dead Trimbits | 0 | |
| nAddressProblems | - Address Problems | 0 | |
| empty | |||
| nNoisy1Pixel | >100% efficiency in alive map | 0 | |
| nNoisy2Pixel | Noisy Pixels | 0 | |
| nThrDefect | Trim Problems | 0 | |
| nGainDefect | PH Gain defects | 0 | |
| nPedDefect | PH Pedestal defects | 0 | |
| nPar1Defect | PH Parameter1 Defects | 0 | |
| PixelDefectsGrade | Pixel Defects Grade ROC | 1 |

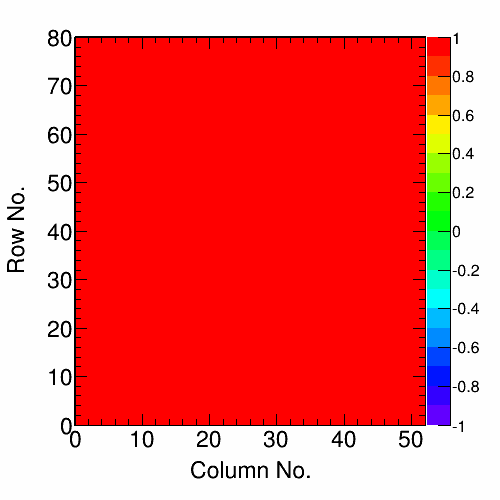

Address Decoding: C15

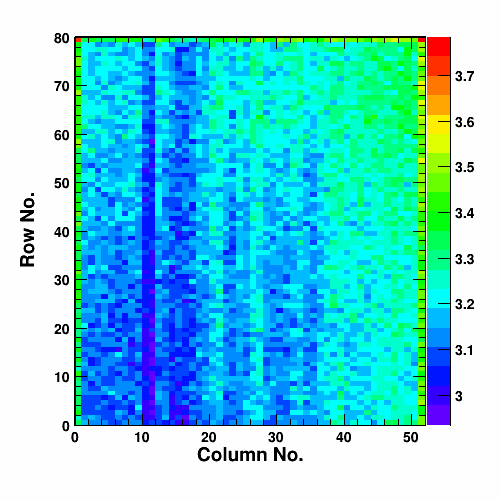

PHCalibrationGain
| N | N | 4160 | |
| mu | μ | 3.19 | |
| sigma | RMS | 0.09 | |
| NGainDefects | # Gain defects | 0 |
PHCalibrationParameter1
PHCalibrationPedestal
| N | N | 4160 | |
| mu | μ | 46.86 | |
| sigma | RMS | 20.30 | |
| mu_electrons | μ_electrons | 2343.17 | |
| sigma_electrons | σ_electrons | 1014.87 |

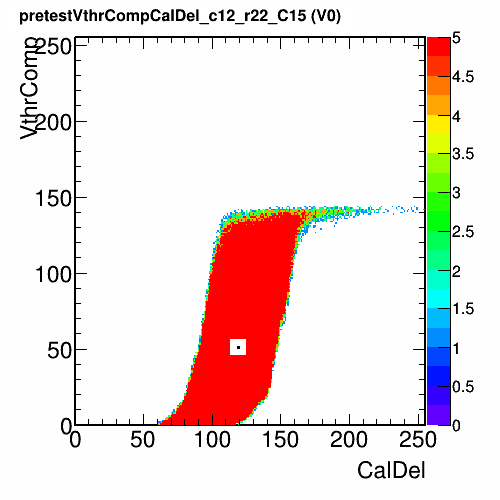

OpParameters
| vcalTrim | vcalTrim | 35 | |
| Vana | Vana | 88 | |
| CalDel | CalDel | 119 | |
| VthrComp | VthrComp | 95 | |
| Vtrim | Vtrim | 109 | |
| PHScale | PHScale | 69 | |
| PHOffset | PHOffset | 181 |

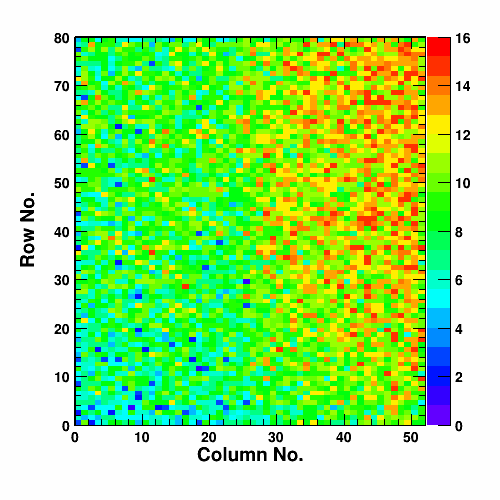

Trim Bit Problems
PerformanceParameters
| Noise | Noise | 119.95 | |
| Threshold | Threshold | 1755 | |
| ThresholdWidth | ThresholdWidth | 46 | |
| RelativeGainWidth | RelativeGainWidth | 0.028 | |
| TrimBits_mu | TrimBits_mu | 9.57 | |
| TrimBits_sigma | TrimBits_sigma | 2.63 |
ReadbackCal
| par0vd | par0vd | 2.12e+01 | |
| par1vd | par1vd | 6.13e+01 | |
| par0va | par0va | 1.58e+01 | |
| par1va | par1va | 6.47e+01 | |
| par0rbia | par0rbia | 1.22e+01 | |
| par1rbia | par1rbia | 1.07e+00 | |
| par0tbia | par0tbia | 5.35e+00 | |
| par1tbia | par1tbia | 2.32e-01 | |
| par2tbia | par2tbia | -1.64e-04 | |
| ReadbackCalibrated | Calibrated | True |
