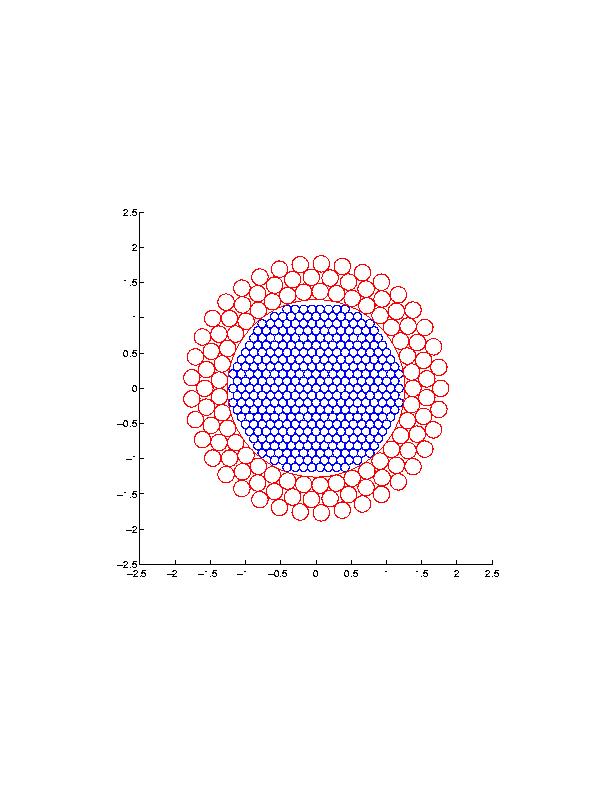

Below is the final camera design which was discussed in the conference call on friday 2/12/99. The inner 379 pixels are spaced 15mm center-to-center which corresponds to an angular size of 0.1179^o. The outer rings of 111 28mm PMTs are spaced at 0.233^o. The focal length of the 10m was taken as 7290mm.

Final Layout: (ps)
