P_2x5_086

P_2x5_086_A

Parts committed by Bolla Gino on date 11/13/2006

Part	ID
BBM	BBM_086-2x5
VHDI	2x5_261

ROC ROC wafer Label

ROC0 W20_XP4K3AT 27B

ROC1 W20_XP4K3AT 27A

ROC2 W20_XP4K3AT 26D

ROC3 W20_XP4K3AT 26C

ROC4 W20_XP4K3AT 26B

ROC5 W20_XP4K3AT 31B

ROC6 W20_XP4K3AT 32B

ROC7 W20_XP4K3AT 32D

ROC8 W20_XP4K3AT 33B

ROC9 W20_XP4K3AT 51B

ROC	ROC wafer	Label
ROC0	W20_XP4K3AT	27B
ROC1	W20_XP4K3AT	27A
ROC2	W20_XP4K3AT	26D
ROC3	W20_XP4K3AT	26C
ROC4	W20_XP4K3AT	26B
ROC5	W20_XP4K3AT	31B
ROC6	W20_XP4K3AT	32B
ROC7	W20_XP4K3AT	32D
ROC8	W20_XP4K3AT	33B
ROC9	W20_XP4K3AT	51B

Inspected by Graves Durand on date 11/15/2006

LR_dev 0.046

LL_dev 0.047

FINAL COMMENT by Graves Durand No assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 11/15/2006 by Graves Durand

PLAQUETTE TESTED on 2006-11-15 by Isaac Childres

IV_XML-File

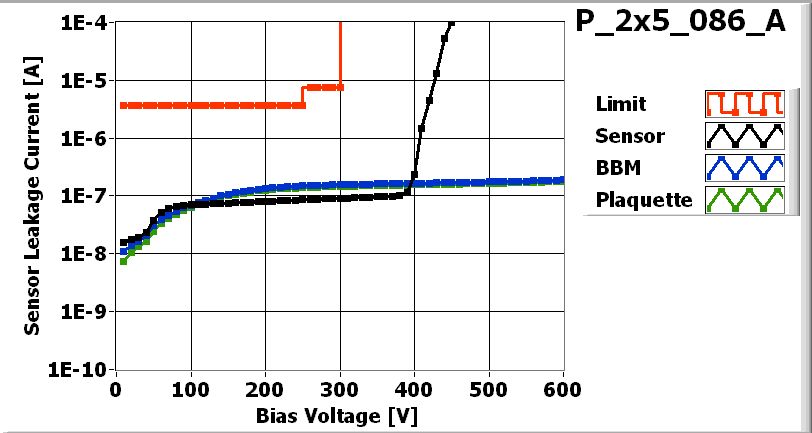

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 44 V

Operational Voltage 84 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

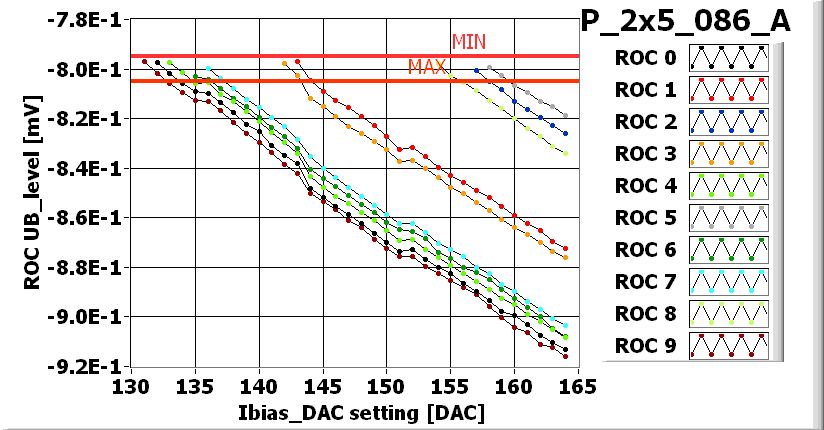

Ibias_DAC	132	143	157	142	133	158	135	136	154	131

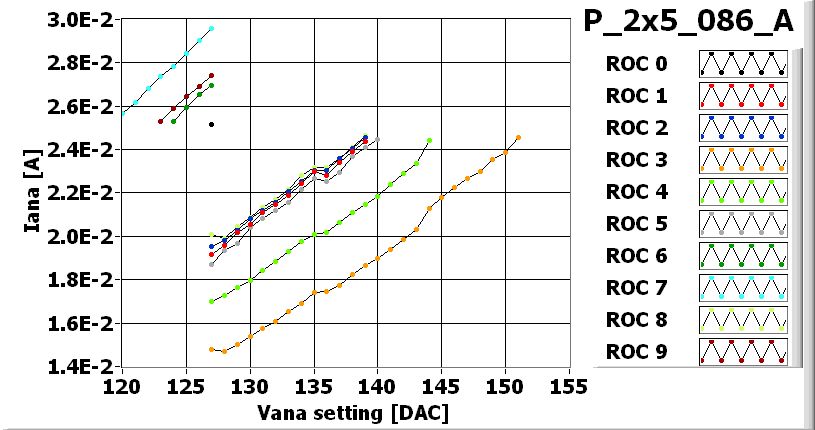

Vana	127	139	139	151	144	140	124	120	139	123
Cal_Del	74	79	71	88	74	76	93	78	87	100
Vthrs_Comp	80	74	77	84	90	79	59	64	81	74
Unbumped	0	0	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	2	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	2	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-28

Plaquette assigned to panel P3R_073
