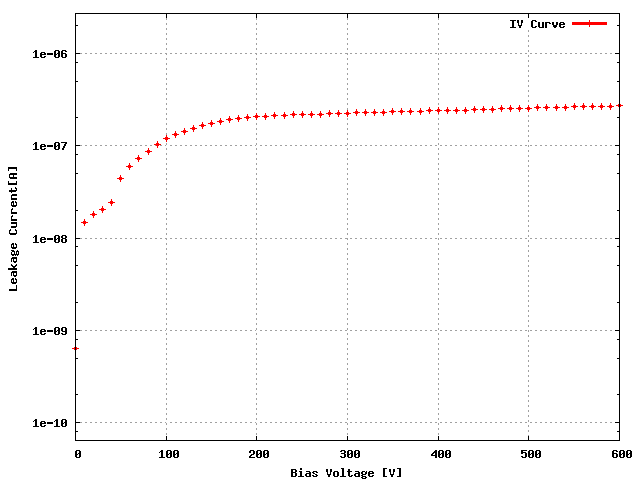

Sensor: S_2x4T_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W13_XX4JPAT | 27D |
ROC1 | W13_XX4JPAT | 27A |
ROC2 | W13_XX4JPAT | 26D |
ROC3 | W13_XX4JPAT | 26C |
ROC4 | W13_XX4JPAT | 12A |
ROC5 | W13_XX4JPAT | 12B |
ROC6 | W13_XX4JPAT | 12C |
ROC7 | W13_XX4JPAT | 12D |
Ibias_DAC, Ibias_DAC Data | 127 | 144 | 130 | 131 | 146 | 143 | 129 | 142 |
Vana, VanaData | 113 | 125 | 135 | 132 | 144 | 117 | 133 | 137 |
CalDelData and plots | 93 | 73 | 85 | 72 | 77 | 79 | 77 | 81 |
VthrCompData and plots | 62 | 81 | 66 | 75 | 85 | 71 | 69 | 78 | Depletion Voltage is -44 and suggested operational voltage is -84
TestDdata ,TestD Plots | 10 | 0 | 0 | 2 | 0 | 12 | 51 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Perfect plaquette.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:50 AM
