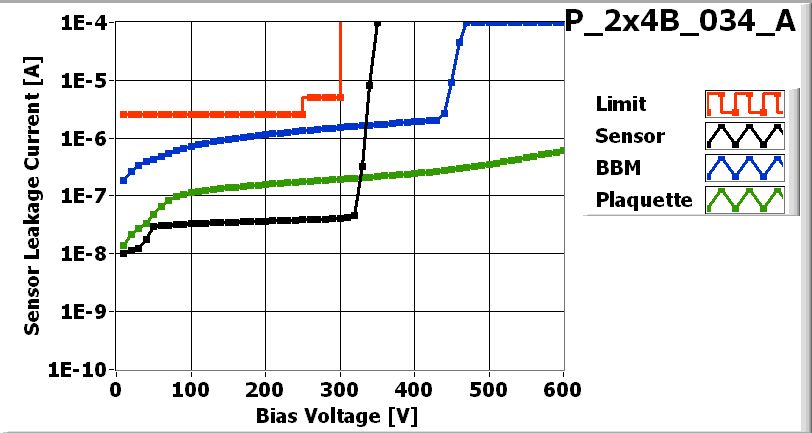

![[IMAGE] of](P_2x4B_034_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_034_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Kirk Arndt on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_034-2x4B |
| VHDI | 2x4_669 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 06D |
| ROC1 | W35_XH4K3HT | 06C |
| ROC2 | W35_XH4K3HT | 06B |
| ROC3 | W35_XH4K3HT | 06A |
| ROC4 | W49_D1LQG5T | 13B |
| ROC5 | W49_D1LQG5T | 14B |
| ROC6 | W49_D1LQG5T | 14C |
| ROC7 | W49_D1LQG5T | 15B |
Inspected by Lockwood Gale on date 5/23/2007
| LR_dev | 0.087 |
| LL_dev | 0.084 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. ROC 0, ch 35, ROC 7 Ch 34, ROc 5 Ch 34, 2 attempts, no wirebonding problems, 3 attemps on bias wire. |
PLAQUETTE made READY for ENCAPSULATION on 5/23/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/23/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/23/2007 by Perera Rajiv
P_2x4B_034_Aon 5/24/2007 3:50 PM
P_2x4B_034_Aon 5/24/2007 3:50 PM
PLAQUETTE TESTED on 2007-05-24 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 166 | 150 | 158 | 154 | 150 | 138 | 150 | 154 | |
| Vana | 134 | 133 | 121 | 138 | 134 | 127 | 144 | 134 | |
| Cal_Del | 80 | 74 | 82 | 103 | 91 | 89 | 91 | 89 | |
| Vthrs_Comp | 79 | 88 | 83 | 67 | 82 | 73 | 89 | 81 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

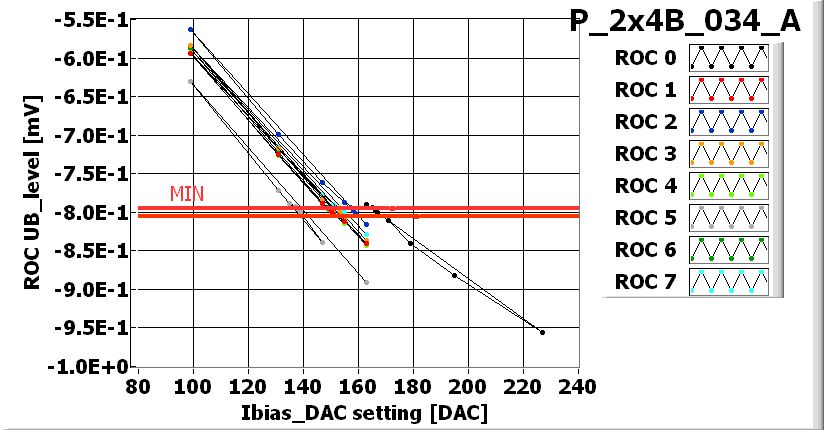

![[IMAGE] of](P_2x4B_034_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

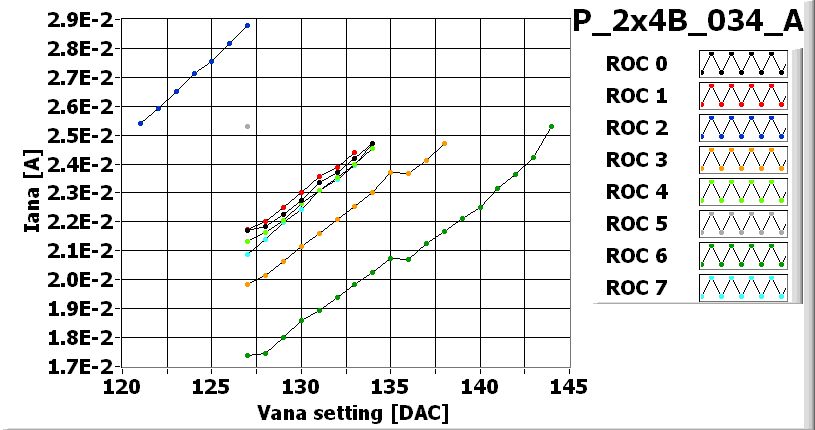

![[IMAGE] of](P_2x4B_034_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_034_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_034_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_034_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_034_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 130 | 150 | 110 | 95 | 130 | 85 | 115 |
| Vsf | 135 | 140 | 135 | 140 | 140 | 140 | 145 | 140 |
| VoffsetOp | 95 | 85 | 85 | 85 | 105 | 70 | 100 | 80 |
| VIbias_PH | 105 | 100 | 100 | 100 | 100 | 95 | 105 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_2x4B_034_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_034_A-580-efficiency.jpg)

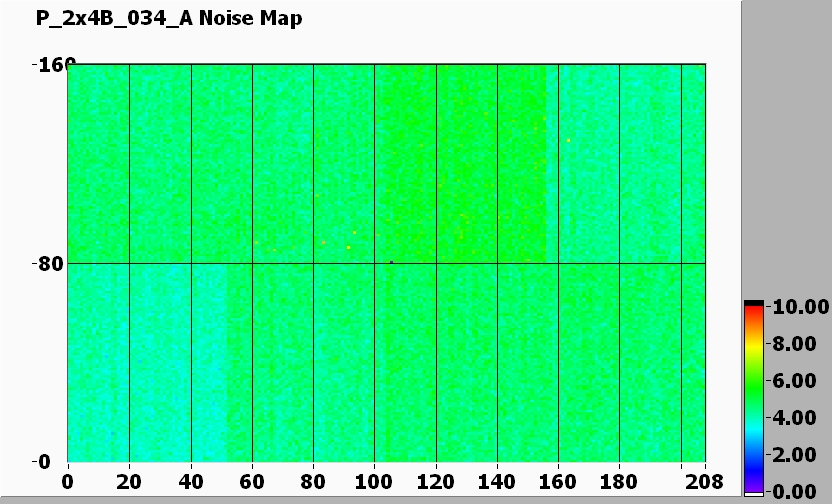

Noise MAP at -200 V
![[IMAGE] of](P_2x4B_034_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_034_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
