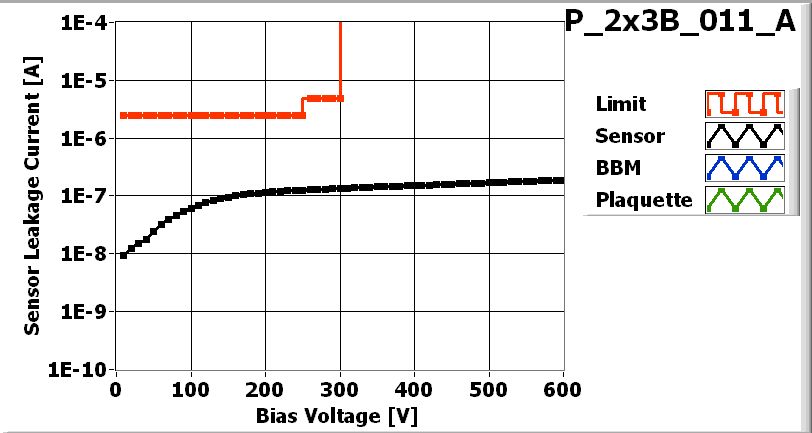

![[IMAGE] of](P_2x3B_011_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

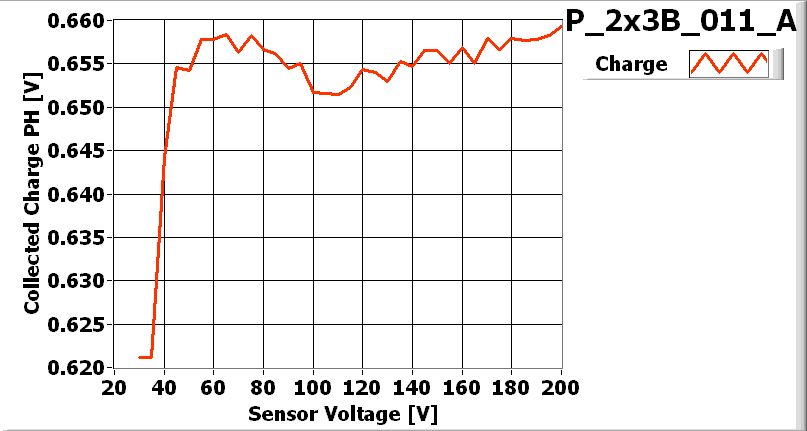

![[IMAGE] of](P_2x3B_011_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 45 V |
| Operational Voltage 85 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_011-2x3B |
| VHDI | 2x3_236 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 68A |
| ROC1 | X74JP0T | 67D |
| ROC2 | X74JP0T | 67C |
| ROC3 | X74JP0T | 46B |
| ROC4 | X74JP0T | 46C |
| ROC5 | X74JP0T | 47A |
Inspected by Arndt Kirk on date 2006-06-28
| LR_dev | 0.067 |
| LL_dev | 0.043 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-28 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-05 by Bolla Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 183 | 168 | 170 | 163 | 165 | 165 | |
| Vana | 139 | 125 | 126 | 106 | 114 | 132 | |
| Cal_Del | 75 | 81 | 84 | 89 | 83 | 96 | |
| Vthrs_Comp | 89 | 85 | 87 | 71 | 67 | 82 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

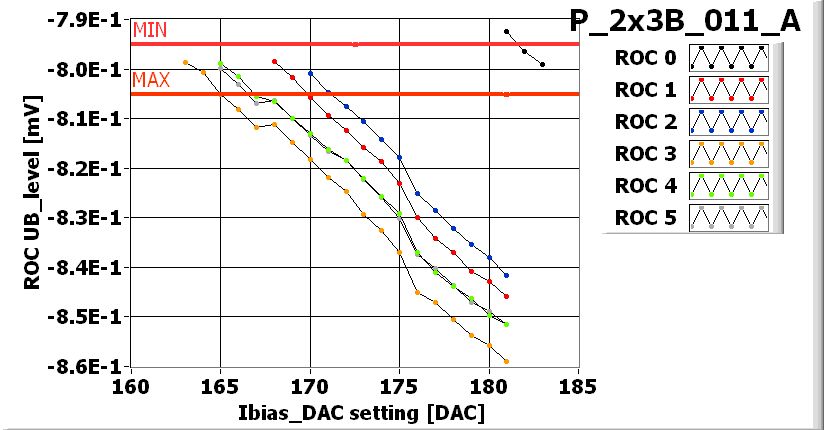

![[IMAGE] of](P_2x3B_011_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

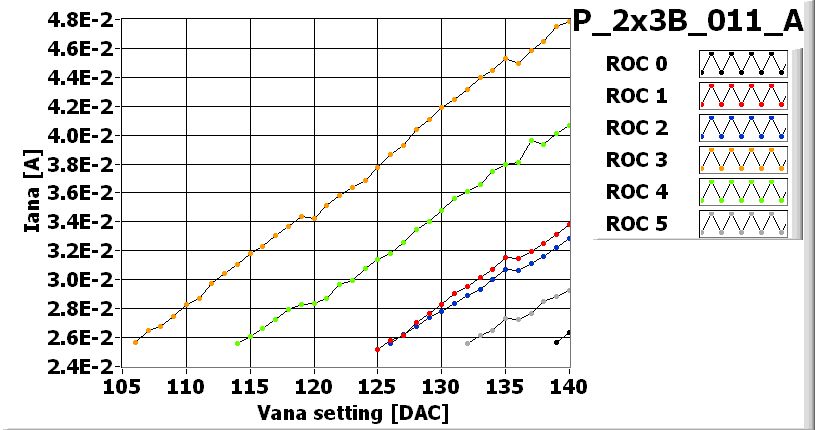

![[IMAGE] of](P_2x3B_011_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_011_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_011_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_011_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_011_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-10
