P_1x5R_125

P_1x5R_125_C

Production testing

Date:6/20/2007

Operator: Emily Grace

start testing time:11:21 AM

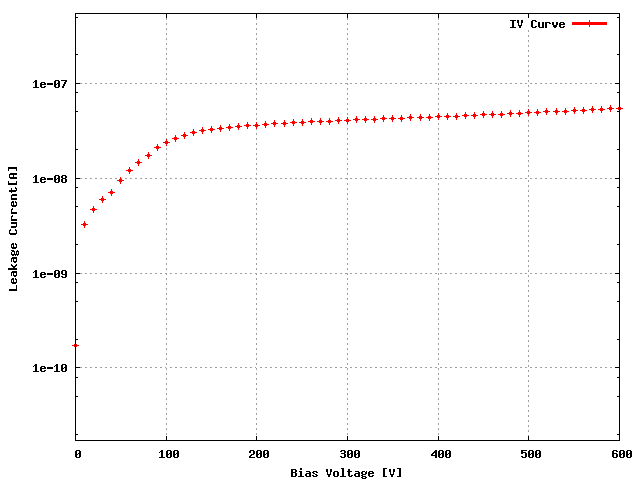

Sensor: S_1x5R_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KMNG2DT 48B

ROC1 KMNG2DT 38C

ROC2 KMNG2DT 68D

ROC3 KMNG2DT 29C

ROC4 KMNG2DT 49C

ROC	ROC wafer	Label
ROC0	KMNG2DT	48B
ROC1	KMNG2DT	38C
ROC2	KMNG2DT	68D
ROC3	KMNG2DT	29C
ROC4	KMNG2DT	49C

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 172 164 154 144 168

Vana, VanaData 158 159 140 123 128

CalDelData and plots 62 64 87 79 73

VthrCompData and plots 91 93 76 77 83

TestDdata ,TestD Plots 1 0 12 0 5

LightData ,Light Plots 9 0 761 0 15

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD BAD GOOD GOOD

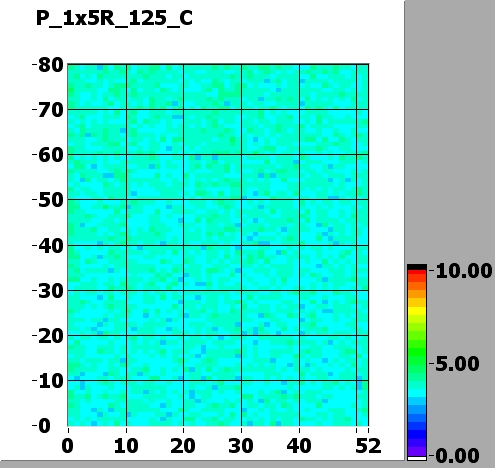

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	110	100	85	125	115
Vsf	160	150	145	140	140
VoffsetOp	100	100	65	65	115
VIbias_PH	105	100	105	100	100

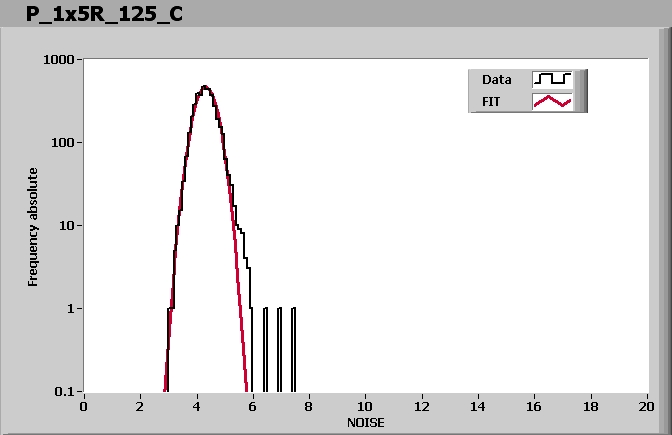

ROC0 NOISE			MEAN = 4.308769 SIGMA = 0.351673

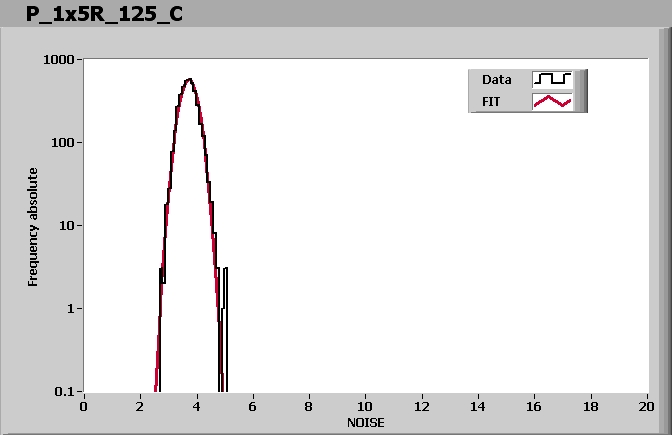

ROC1 NOISE			MEAN = 3.715937 SIGMA = 0.287152
ROC2 NOISE			MEAN = 4.575174 SIGMA = 0.387101

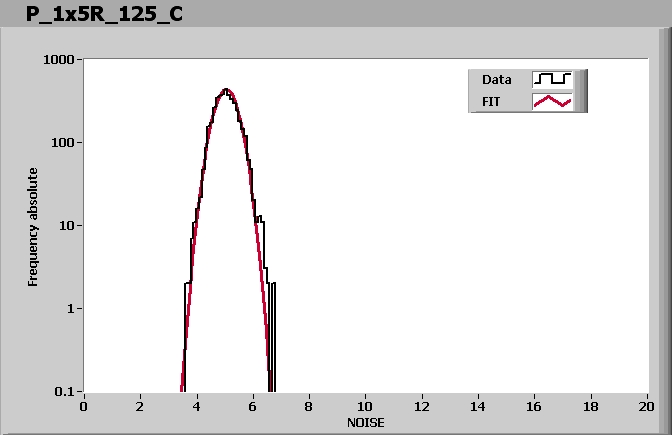

ROC3 NOISE			MEAN = 5.037343 SIGMA = 0.387315
ROC4 NOISE			MEAN = 3.591131 SIGMA = 0.253560

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:47 AM

Ibias_DAC, Ibias_DAC Data	172	164	154	144	168
Vana, VanaData	158	159	140	123	128
CalDelData and plots	62	64	87	79	73
VthrCompData and plots	91	93	76	77	83
TestDdata ,TestD Plots	1	0	12	0	5
LightData ,Light Plots	9	0	761	0	15
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	BAD	GOOD	GOOD
