Info:
Model: XP2970/02
Serial Number: 035302
Tube Gain: 1×106
High Voltage, (V): 1153
Date: Tuesday, April 19, 2005 16:42:12
Summary:
Non-uniformity, (%): 10.3
Sensitivity slope at edge, (1/mm): 0.858309
Effective radius, (mm): 12.1727
QE attenuation factors at 10, 11, 12 mm: 0.957, 0.943, 0.913
Average QE (380-450nm), (%): ~31.1
Data
Files:

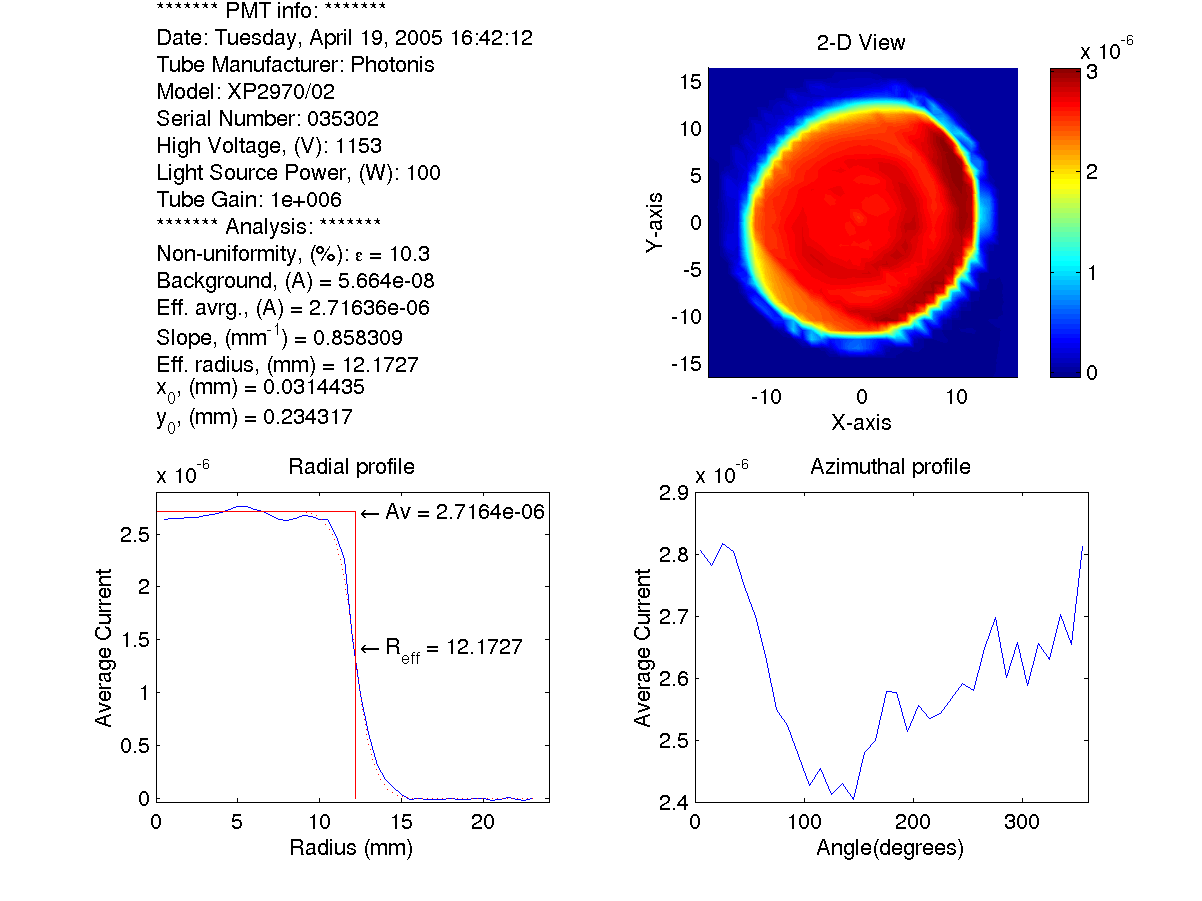

Surface
scan
Quantum efficiency
Analysis
Results:
Surface scan: png,
MATLAB fig
Quantum efficiency:
png, MATLAB
fig
|
