Info:
Model: XP2970/02
Serial Number: 034990
Tube Gain: 1×106
High Voltage, (V): 1151
Date: Tuesday, March 29, 2005 13:35:51
Summary:
Non-uniformity, (%): 9.11
Sensitivity slope at edge, (1/mm): 1.13472
Effective radius, (mm): 12.4693
QE attenuation factors at 10, 11, 12 mm: 0.957, 0.943, 0.913
Average QE (380-450nm), (%): ~30.8
Data
Files:
Surface
scan

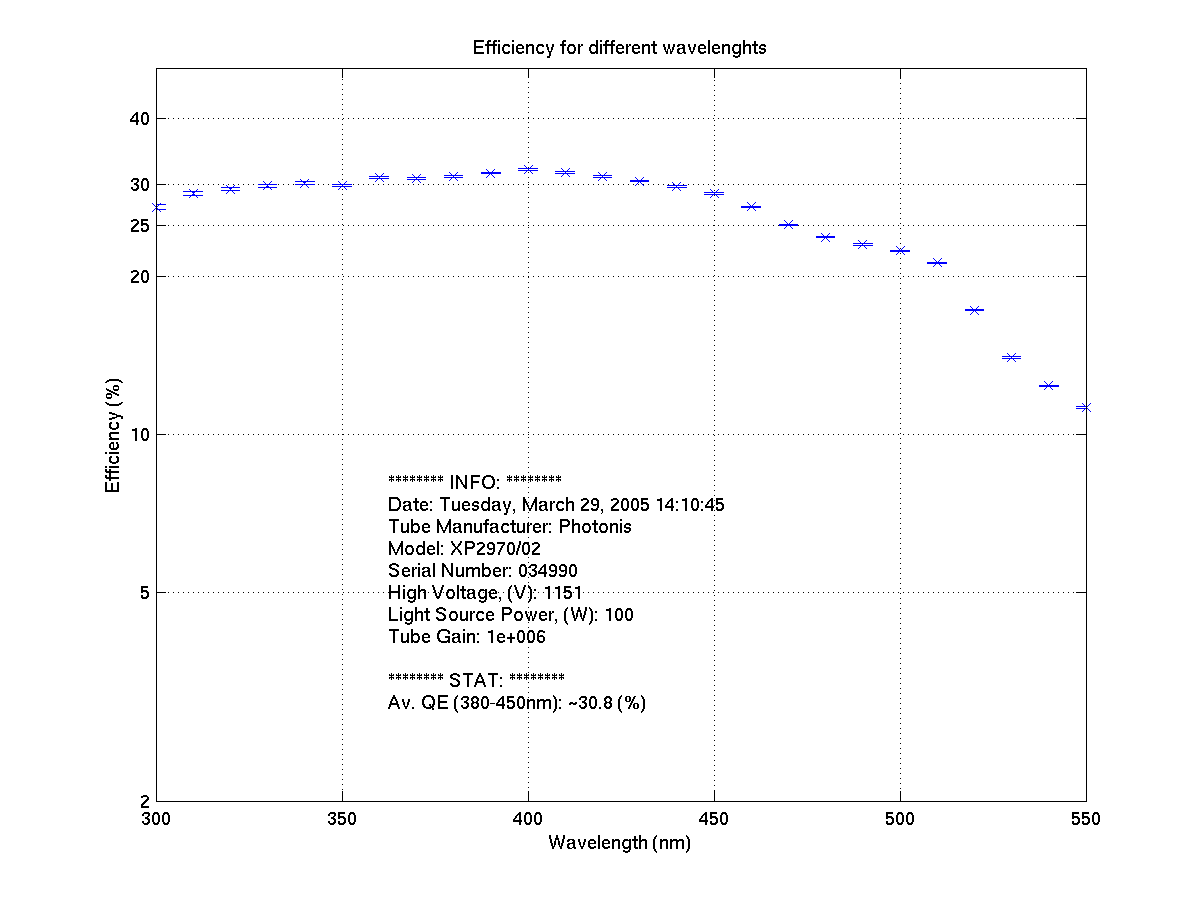

Quantum efficiency
Analysis
Results:
Surface scan: png,
MATLAB fig
Quantum efficiency:
png, MATLAB
fig
|
