Info:
Model: XP2970/02
Serial Number: 033101
Tube Gain: 1×106
High Voltage, (V): 1114
Date: Sunday, September 05, 2004 14:54:41
Summary:
Non-uniformity, (%): 9.77
Sensitivity slope at edge, (1/mm): 0.854759
Effective radius, (mm): 12.65
QE attenuation factors at 10, 11, 12 mm: 0.931, 0.924, 0.9
Average QE (380-450nm), (%): ~35.1
Data
Files:

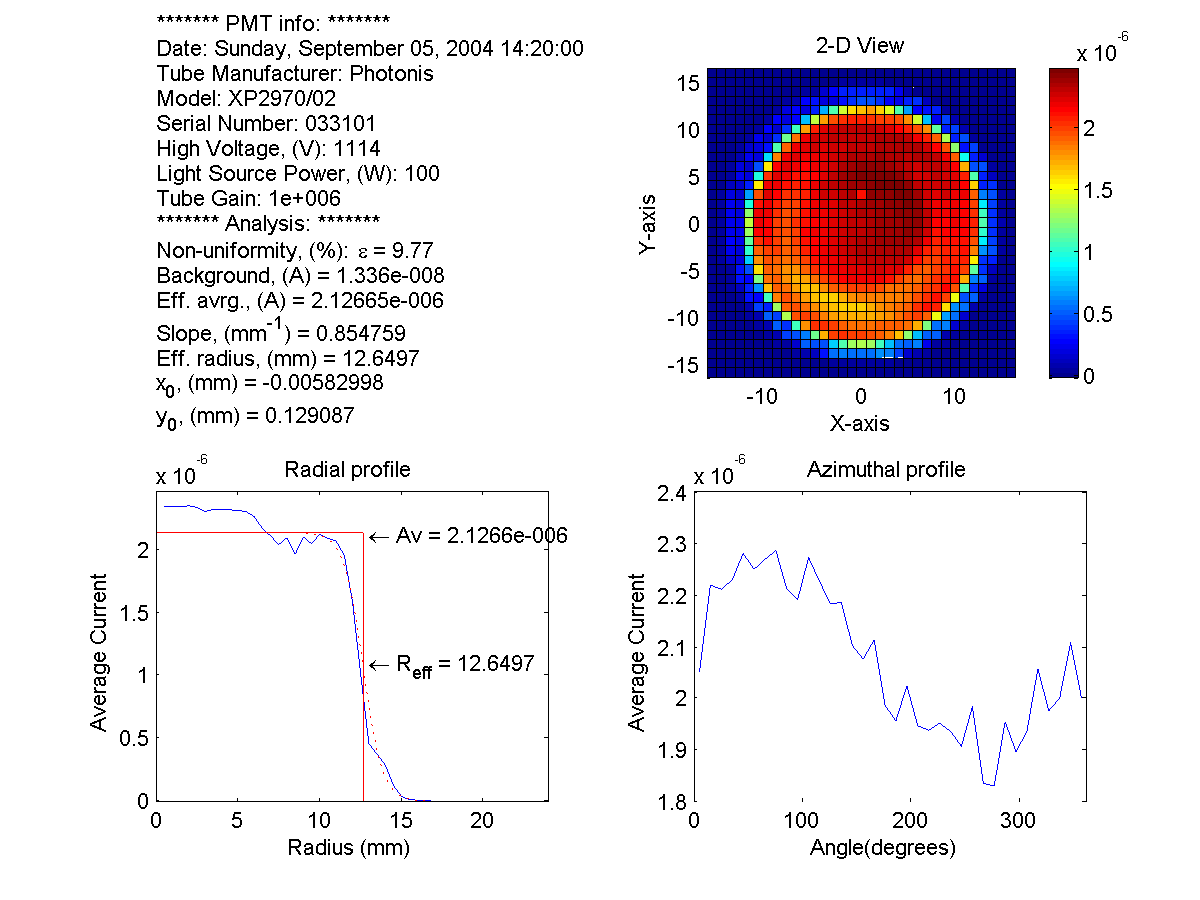

Surface
scan
Quantum efficiency
Analysis
Results:
Surface scan: png,
MATLAB fig
Quantum efficiency:
png, MATLAB
fig
|
