Info:
Model: XP2970/02
Serial Number: 033005
Tube Gain: 1×106
High Voltage, (V): 1133
Date: Saturday, August 21, 2004 13:18:05
Summary:
Non-uniformity, (%): 6.73
Sensitivity slope at edge, (1/mm): 0.826748
Effective radius, (mm): 12.41
QE attenuation factors at 10, 11, 12 mm: 0.944, 0.931, 0.896
Average QE (380-450nm), (%): ~39.5
Data
Files:

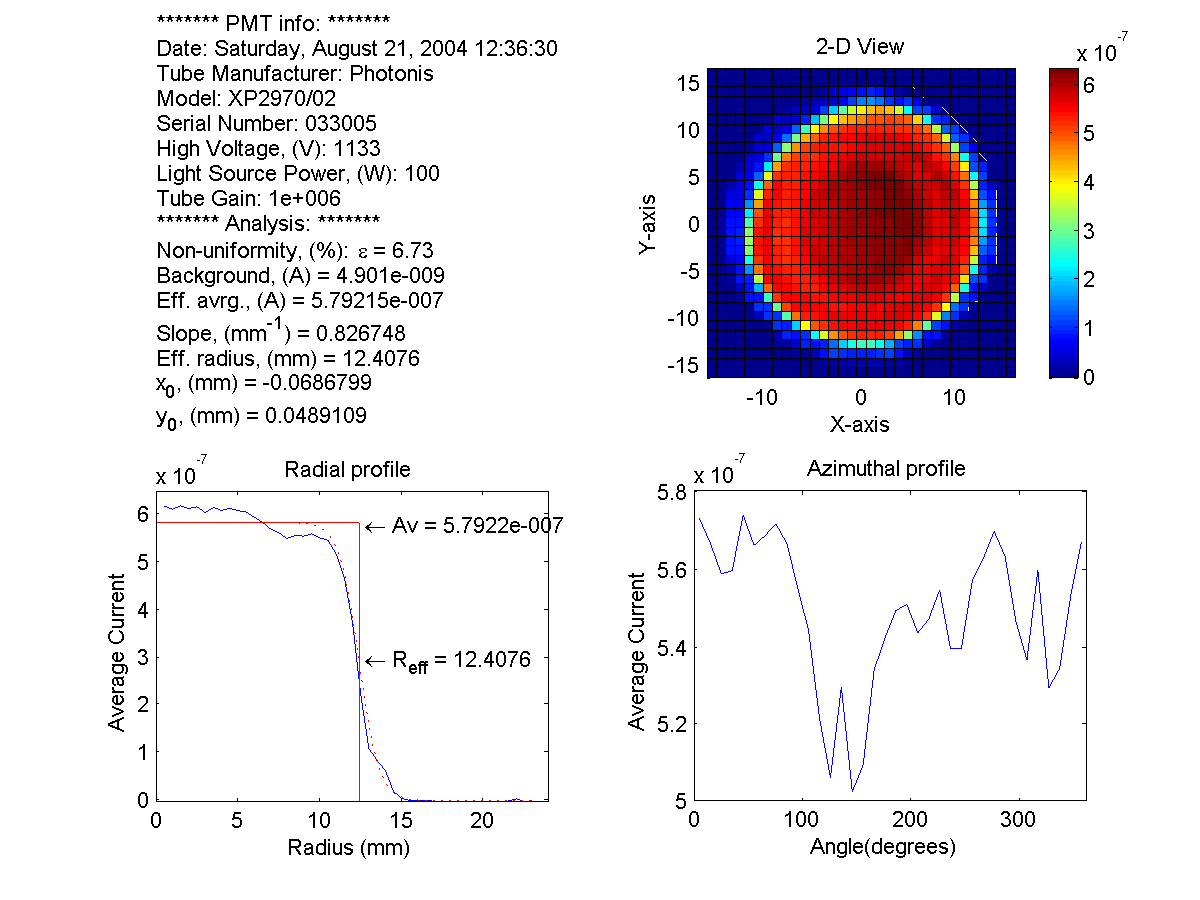

Surface
scan
Quantum efficiency
Analysis
Results:
Surface scan: png,
MATLAB fig
Quantum efficiency:
png, MATLAB
fig
|
