Info:
Model: XP2970/02
Serial Number: 032612
Tube Gain: 1×106
High Voltage, (V): 1094
Date: Sunday, June 27, 2004 20:47:36
Summary:
Non-uniformity, (%): 5.76
Sensitivity slope at edge, (1/mm): 0.721906
Effective radius, (mm): 12.38
QE attenuation factors at 10, 11, 12 mm: 0.969, 0.955, 0.914
Average QE (380-450nm), (%): ~29.9
Data
Files:

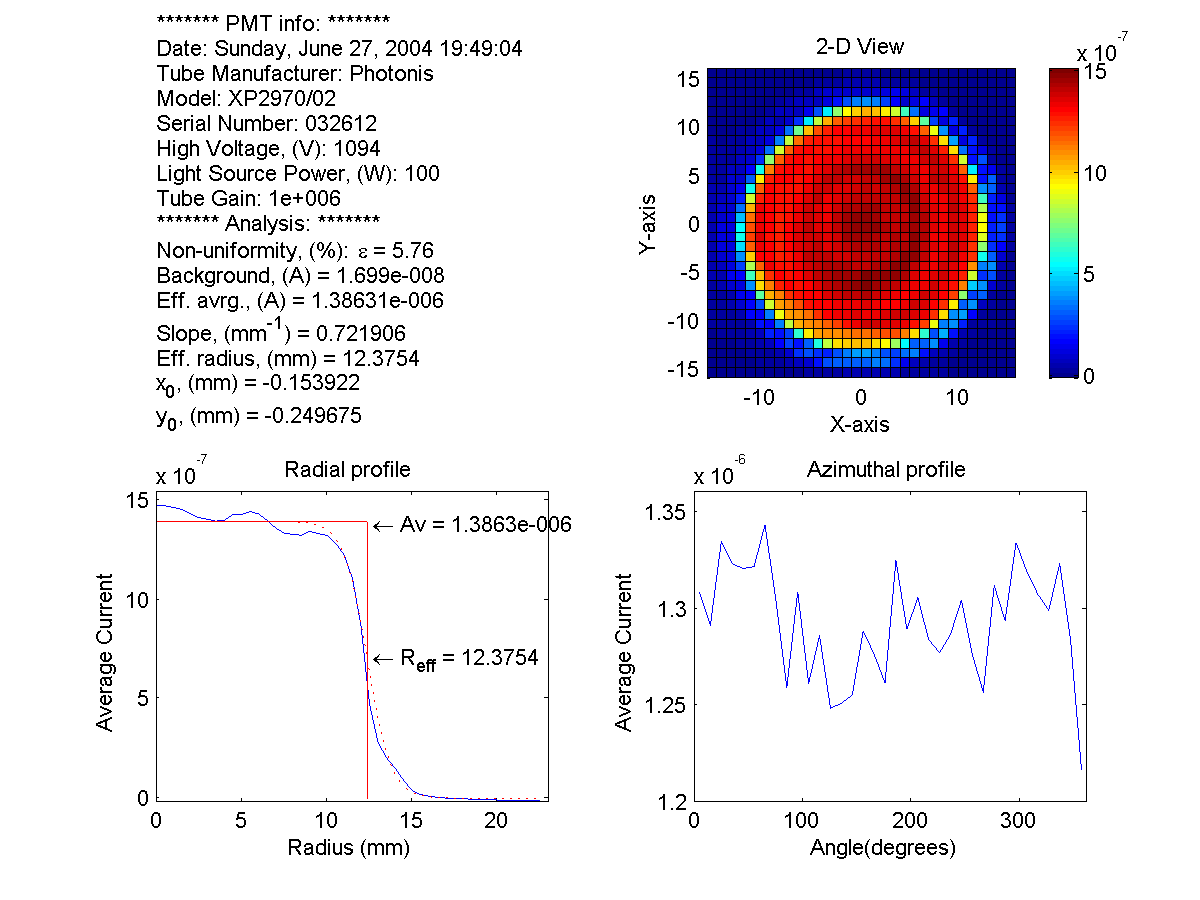

Surface
scan
Quantum efficiency
Analysis
Results:
Surface scan: png,
MATLAB fig
Quantum efficiency:
png, MATLAB
fig
|
